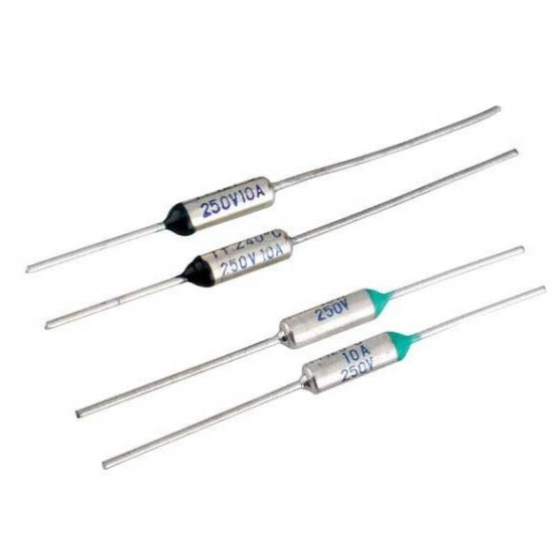

UDF Series
Details

◆DESCRIPTION

Thermal links are designed to provide upper limit temperature protection of
all electric and electronic products, keeping the products functioning properly and safely and protecting lives and property as well as products from unexpected fires.


APPLICATION

Toaster, Baker’s Oven, Battery for Cellular Phone, Steaming Box, Party Cooker, Power Cord, Thermo-Resistor, Condenser, Bean Curd Machine,Waste Pulverizer, Transformer for Audio System, Timer Switch, UPS, SMPS, Power Strip, Sterilizer, Copy Machine, Gas Boiler, Solenoid, Adaptor, Automobile, Motor, Transformer, Electric Humidifier, Gas Range, Ice Cream Freezer, etc.


◆SPECIFICATION

PART NO EK UL/cUL VDE CCC PSE TF TH TM:VDE UL
UDF 050S 50 30 130
UDF 057S 57 37 130
UDF 066S 66 42 110 (130)
UDF 072S 72 50 115 (130)
UDF 077S 77 55 120 (130)
UDF 084S 84 60 125 (114)
UDF 091S 91 67 135 (121)
UDF 098S 98 76 140 (130)
UDF 100S 100 78 135 (250)
UDF 104S 104 80 150
UDF 110S 110 88 130
UDF 115S 115 95 170
UDF 119S 119 95 170
UDF 121S 121 95 170
UDF 128S 128 106 155
UDF 132S 132 110 155
UDF 139S 139 117 170
UDF 141S 141 117 171
UDF 144S 144 120 250
UDF 152S 152 128 176(175)
UDF 167S 167 142 210
UDF 169S 169 145 300
UDF 170S 170 146 300(190)
UDF 179S 179 155 300
UDF 184S 184 160 300(214)
UDF 192S 192 162 290(222)
UDF 216S 216 241
UDF 222S 222 195 300
UDF 228S 228 193 300
UDF 240S 240 200 290(260)
UDF 260S 260 220 350
UDF 280S 280 230 350



EXAMPLE


●Before fusing off


Dimensions         mm


●After fusing off

Dimensions         mm



Type L1 L2
S 25.4 35.0
S-L 35.0 35.0
Option Custom made Custom made
● Approved : On applying TOLERANCE +0℃,-5℃



TEMPERATURE / CURRENT CORRELATION CURVE

●TEMPERATURE





●CURRENT

Rated Voltage and Current Max
EK 250V/15A
UL/cUL 125V/15A
250V/10A
250V/16A
VDE 250V/15A
PSE 125V/15A
250V/15A
CCC 250V/15A
