◆FEATURES

●Use in high temperature environments equipment service aspect Insulated Leads temperature sensor.

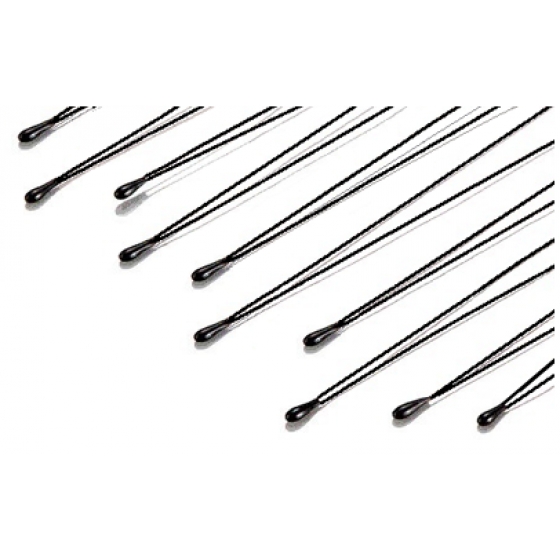

●The UXT Series thermistors is a high-performance thermal sensing device.
●UXT thermistor and which is different with flexible lead-wires.
●Excellent thermal cycle endurance.
●No adjust between the control circuit and the sensor.


◆SPECIFICATIONS


●Temperature rating  : -40℃ to 200℃
●B value : 3320K ~ 4200K
●Determined by rated zero-power : Resistance at 25℃and 85℃

●Rated zero-power :

+/- 0.1℃    (0℃-70℃)

●Resistance value at 25℃  :

5 K ohms
10 K ohms
47 K ohms
50 K ohms
100 K ohms
150 K ohms

Dissipation constant          0.7mW/℃
Thermal time constant      Typically 3.2 seconds in air.
Maximum power Rating   3.5 mW at 25℃
Tolerance                            ±0.5%    ±1%   ±3%   ±5%

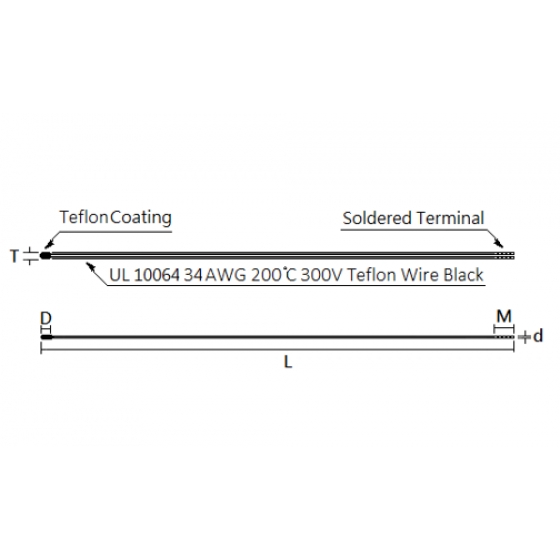

Dimensions


T	Ø	Ø	Ø
Size (mm)	1.2 ± 0.1	1.0 ± 0.1	0.8 ± 0.1


◆Order Map


Series Code	Res. value	Res. Tolerance	Lengths	B value
UXT	103	D : ±0.5 %	Exp:400 : 400 mm	25℃/85℃
Temperature Sensor	at 2 5℃  10 x 103 Ω	F :  ±  1%
		H : ±  3%
		J  :  ±  5%
