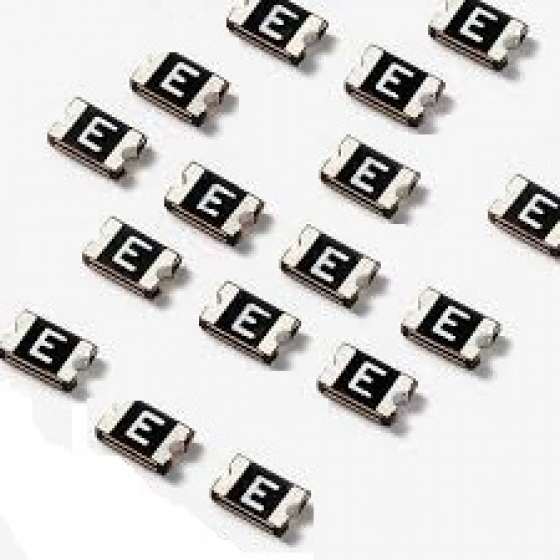

UBF SMD Series (1812)
Details
UBF SMD (1812)

Electrical Characteristics

Part No lhold (A) Itrip
(A)
Vmax
(V)
Imax
(A)
Pd typ
(W)
Max.
(A)
Time-to-trip
 (s)
R min
(Ω)
R1 Max
 (Ω)
UBF SMD010 0.10 0.30 60 10 0.8 8.00 0.020 1.600 15.00
UBF SMD014 0.14 0.30 60 10 0.8 8.00 0.008 1.200 6.500
UBF SMD020 0.20 0.40 30 10 0.8 8.00 0.020 0.800 5.000
UBF SMD035 0.35 0.70 16 40 0.8 8.00 0.100 0.320 1.500
UBF SMD050 0.50 1.00 16 40 0.8 8.00 0.150 0.150 1.000
UBF SMD075 0.75 1.50 16 40 0.8 8.00 0.200 0.110 0.450
UBF SMD075/24 0.75 1.50 24 40 1.0 8.00 0.200 0.110 0.290
UBF SMD075/33 0.75 1.50 33 40 1.0 8.00 0.200 0.110 0.400
UBF SMD110 1.10 2.20 8 100 0.8 8.00 0.300 0.040 0.210
UBF SMD110/16 1.10 1.95 16 100 0.8 8.00 0.500 0.040 0.180
UBF SMD110/24 1.10 2.20 24 100 1.0 8.00 0.500 0.060 0.200
UBF SMD125 1.25 2.50 6 40 0.8 8.00 0.400 0.050 0.140
UBF SMD150 1.50 3.00 8 100 0.8 8.00 0.500 0.040 0.110
UBF SMD150/12 1.50 3.00 12 100 1.0 8.00 0.500 0.040 0.110
UBF SMD150/24 1.50 3.00 24 100 1.0 8.00 0.150 0.040 0.120
UBF SMD160 1.60 3.20 8 100 0.8 8.00 0.500 0.030 0.100
UBF SMD160/12 1.60 3.20 12 100 1.0 8.00 1.000 0.030 0.100
UBF SMD160/16 1.60 3.20 16 100 1.0 8.00 1.000 0.030 0.100
UBF SMD200 2.00 3.50 8 100 1.0 8.00 2.000 0.020 0.070
UBF SMD260 2.60 5.00 6 100 1.0 8.00 2.500 0.015 0.047
UBF SMD260/13 2.60 5.00 13.2 100 1.3 8.00 5.000 0.015 0.050
UBF SMD260/16 2.60 5.00 16 100 1.3 8.00 5.000 0.015 0.050
UBF SMD300 3.00 5.00 6 100 1.0 8.00 4.000 0.012 0.040


Comment

Ihold Hold current is the maximum current that UB Fuse can pass through without interruption at 20°C unless otherwise specified.
Itrip Trip current is the minimum current that will switch the device from low resistance state to high resistance state at 20°C unless specified.
Vmax The maximum voltage device can withstand without damage at rated current.
Imax The maximum current device can withstand without damage at rated voltage.
Pd The power dissipated from device when in the tripped state at 20°C unless otherwise specified.
R min The minimum resistance of device as received from the factory at 20°C unless otherwise specified.

R max The maximum resistance of device as received from the factory at 20°C unless otherwise specified.
R1max The maximum resistance of device when measured one hour post trip at 20°C unless otherwise specified.
Max.
Time-to-trip
The maximum time for device to trip at specified current ratings at 20°C unless otherwise specified.


Dimensions

  A B C D E
Part No
UBF SMD
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
4.37 4.37 3.07 3.41 0.60 0.62 0.30 -- 0.25 --


●NOTE:

All drawings are not in scale and layout may vary.
All parts dimension is in millimeter unless otherwise specified.
Terminal material is Tin (Sn) plated Copper (Cu).

●Packaging: 2000 pcs per reel

●Agency Approval:


UL File Number E 119550
c-UL File Number E 119550
TUV File Number Pending




◆Typical Thermal Derating Chart - Ihold (A)

Part No -40 -20 0 20 40 60 85
UBF SMD050 0.76 0.67 0.55 0.50 0.45 0.35 0.23
UBF SMD075 1.10 0.99 0.87 0.75 0.63 0.49 0.35
UBF SMD110 1.60 1.45 1.28 1.10 0.92 0.71 0.52
UBF SMD150 2.30 2.05 1.77 1.50 1.23 0.95 0.61











◆ Environmental Characteristics

Test Test Conditions Resistance Change
Passive Aging +85°C, 1000 hours  ±10% typical resistance change
Humidity Aging +85°C, 85% R.H., 7 days  ±10% typical resistance change
Thermal Shock +85°C to -40°C, 10 times
MIL-STD-202, Method 107G
 ±10% typical resistance change
Vibration MIL-STD-883C, Condition A No change
Solvent resistance MIL-STD-202, Method 215 No change


◆Typical Time To Trip Curve at 23°C











◆ Recommended Reflow Profile & Pad Size




Part No R S T
UBF SMD010 3.15 1.78 3.45
UBF SMD014 3.15 1.78 3.45
UBF SMD020 3.15 1.78 3.45
UBF SMD050 3.15 1.78 3.45
UBF SMD075 3.15 1.78 3.45
UBF SMD110 3.15 1.78 3.45
UBF SMD125 3.15 1.78 3.45
UBF SMD150 3.15 1.78 3.45
UBF SMD160 3.15 1.78 3.45
UBF SMD200 3.15 1.78 3.45
UBF SMD260 3.15 1.78 3.45
UBF SMD300 3.15 1.78 3.45









◆ Tape & Reel Packaging Specification per EIA481-1



Parameter as EIA481-1 Dimensions (mm)
W 12.00 ± 0.30
P0 4.00 ± 0.10
P1 8.00 ± 0.10
P3 2.00 ± 0.05
A0 3.50 ± 0.23
B0 5.10 ± 0.15
B1max 8.2
D0 1.50 +0.10/-0.00
F 5.50 ± 0.05
E1 1.75 ± 0.10
E2min 10.25
T max 0.6
T1max 0.1
K0 0.90 ± 0.15
