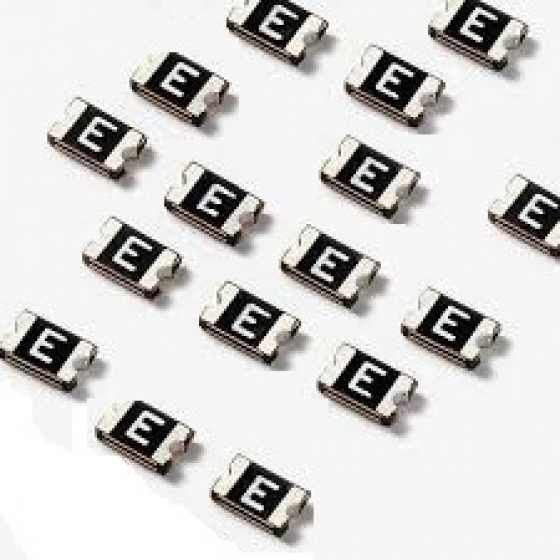

UBF mSMD Series (1210)
Details

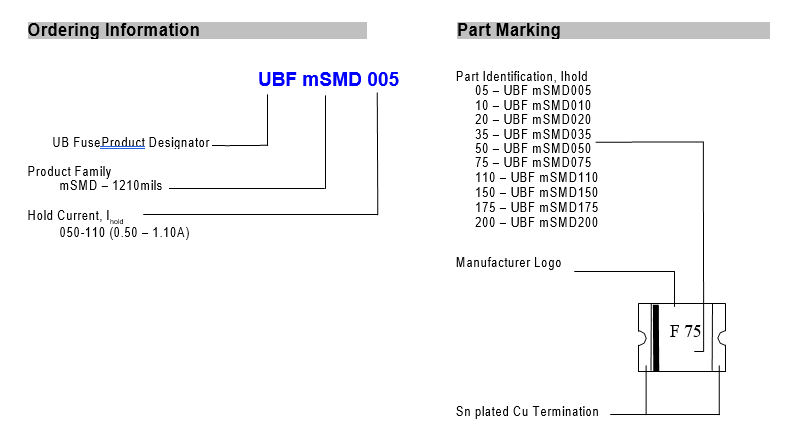

◆ UBF mSMD (1210)

◆Electrical Characteristics

Part No lhold (A) Itrip
(A)
Vmax
(V)
Imax
(A)
Pd typ
(W)
Max.
(A)
Time-to-trip
 (s)
R min
(Ω)
R1 Max
 (Ω)
UBF mSMD005 0.35 0.15 60 10 0.6 0.25 3.00 3.600 50.00
UBF mSMD010 0.10 0.25 30 10 0.6 0.50 1.50 1.600 15.00
UBF mSMD020 0.20 0.40 30 10 0.6 8.00 0.02 0.800 5.000
UBF mSMD035 0.35 0.75 16 40 0.6 8.00 0.20 0.320 1.300
UBF mSMD050 0.50 1.00 16 40 0.6 8.00 0.10 0.250 0.900
UBF mSMD075 0.75 1.50 8 40 0.6 8.00 0.10 0.130 0.400
UBF mSMD110 1.10 2.20 6 100 0.8 8.00 0.30 0.060 0.210
UBF mSMD150 1.50 3.00 6 100 0.8 8.00 0.50 0.040 0.110
UBF mSMD175 1.75 3.50 6 100 0.8 8.00 0.60 0.020 0.080
UBF mSMD200 2.00 4.00 6 100 0.8 8.00 1.00 0.015 0.070


Comment

Ihold Hold current is the maximum current that UB Fuse can pass through without interruption at 20°C unless otherwise specified.
Itrip Trip current is the minimum current that will switch the device from low resistance state to high resistance state at 20°C unless specified.
Vmax The maximum voltage device can withstand without damage at rated current.
Imax The maximum current device can withstand without damage at rated voltage.
Pd The power dissipated from device when in the tripped state at 20°C unless otherwise specified.
R min The minimum resistance of device as received from the factory at 20°C unless otherwise specified.

R max The maximum resistance of device as received from the factory at 20°C unless otherwise specified.
R1max The maximum resistance of device when measured one hour post trip at 20°C unless otherwise specified.
Max.
Time-to-trip
The maximum time for device to trip at specified current ratings at 20°C unless otherwise specified.


Dimensions

  A B C D E
Part No
UBF mSMD
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
3.00 3.43 2.35 2.80 0.60 1.15 0.25 0.75 0.10 0.45


●NOTE:

All drawings are not in scale and layout may vary.
All parts dimension is in millimeter unless otherwise specified.
Terminal material is Tin (Sn) plated Copper (Cu).

●Packaging: 3000 pcs per reel

●Agency Approval:


UL File Number E 119550
c-UL File Number E 119550
TUV File Number Pending

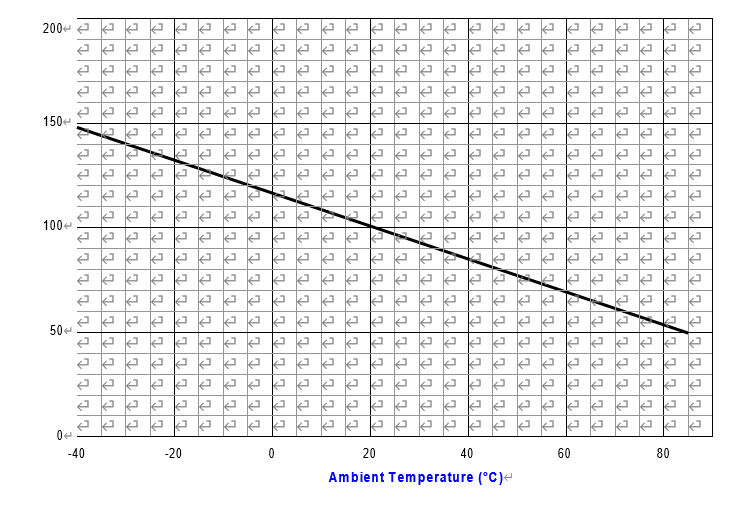

◆Typical Thermal Derating Chart - Ihold (A)

Part No -40 -20 0 20 40 60 85
UBF mSMD005 0.07 0.06 0.06 0.05 0.04 0.03 0.02
UBF mSMD010 0.15 0.12 0.12 0.10 0.08 0.06 0.05
UBF mSMD020 0.29 0.23 0.23 0.20 0.17 0.13 0.09
UBF mSMD035 0.51 0.40 0.40 0.35 0.29 0.22 0.16
UBF mSMD050 0.73 0.58 0.58 0.50 0.42 0.32 0.23
UBF mSMD075 1.10 0.86 0.86 0.75 0.62 0.48 0.35
UBF mSMD110 1.60 1.27 1.27 1.10 0.91 0.70 0.51
UBF mSMD150 2.18 1.73 1.73 1.50 1.25 0.96 0.69
UBF mSMD175 2.54 2.31 2.01 1.75 1.45 1.12 0.81
UBF mSMD200 2.90 2.64 2.30 2.00 1.66 1.28 0.92


















◆ Environmental Characteristics

Test Test Conditions Resistance Change
Passive Aging +85°C, 1000 hours  ±10% typical resistance change
Humidity Aging +85°C, 85% R.H., 7 days  ±10% typical resistance change
Thermal Shock +85°C to -40°C, 10 times
MIL-STD-202, Method 107G
 ±10% typical resistance change
Vibration MIL-STD-883C, Condition A No change
Solvent resistance MIL-STD-202, Method 215 No change

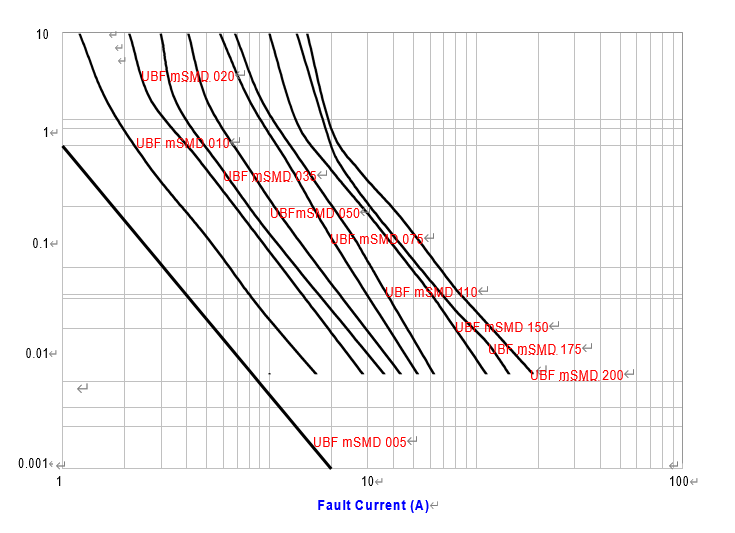

Typical Time To Trip Curve at 20°C






◆ Recommended Reflow Profile & Pad Size



Part No R S T
UBF mSMD050 2.50 1.00 2.00
UBF mSMD075 2.50 1.00 2.00
UBF mSMD110 2.50 1.00 2.00

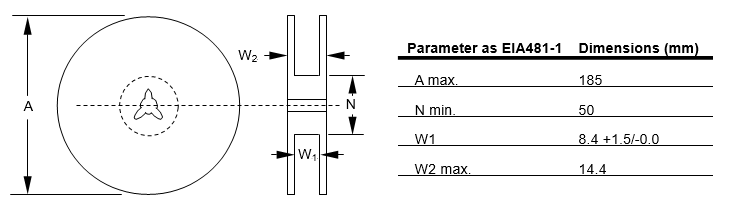

◆ Tape & Reel Packaging Specification per EIA481-1



Parameter as EIA481-1 Dimensions (mm)
W 8.00 ± 0.30
P0 4.00 ± 0.10
P1 4.00 ± 0.10
P3 2.00 ± 0.05
A0 2.95 ± 0.10
B0 3.58 ± 0.10
B1max 4.35
D0 1.50 +0.10/-0.00
F 3.50 ± 0.05
E1 1.75 ± 0.10
E2min 6.25
T max 0.6
T1max 0.1
K0 0.80 ± 0.10
