◆FEATURES

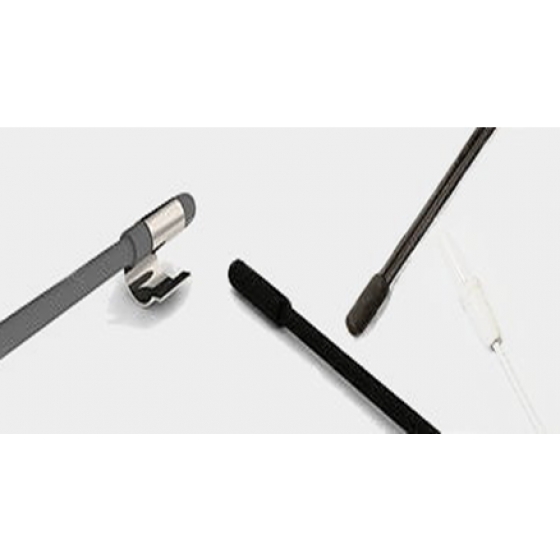

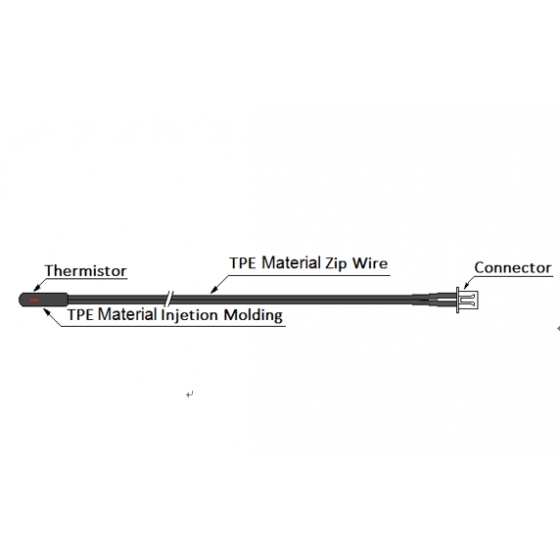

●The UPE Series sensors use PTE material water resistant product.
●The specification defines the score, dimensions, electrical properties, mechanical properties and climate characteristics.
●The temperature sensor International Protection is IP68 (Europe standard: EN60529).
●Hi-pot test AC2000V/1min,shall be withstand between each end of sensor and the shell
●Insulation test：≥20MΩ/DC500V.
●Max Rated power：250mW (in still air)

◆SPECIFICATIONS

●Temperature rating  : -50℃ to 100℃
●B value : 3435K ~ 4200K
●Determined by rated zero-power : Resistance at 25℃and 85℃

●Resistance value at 25℃  :

5 K ohms
10 K ohms
50 K ohms
100 K ohms
474 K ohms

Dissipation constant          2.4mW/℃
Thermal time constant      Typically 15 seconds in air.
Maximum power Rating   250 mW at 25℃
Tolerance                            ±1% ±3%   ±5%

◆Order Map


Series Code	Res. value	Res. Tolerance	Lead Gauge	Lengths	B value
UPE	103	F :  ±  1%	AWG Number	Exp :400: 400 mm	25℃/85℃
Temperature Sensor	at 2 5℃  10 x 103 Ω	H : ±  3%
		J  :  ±  5%
