UDS Series
Details
◆FEATURES

●High stability and best price.

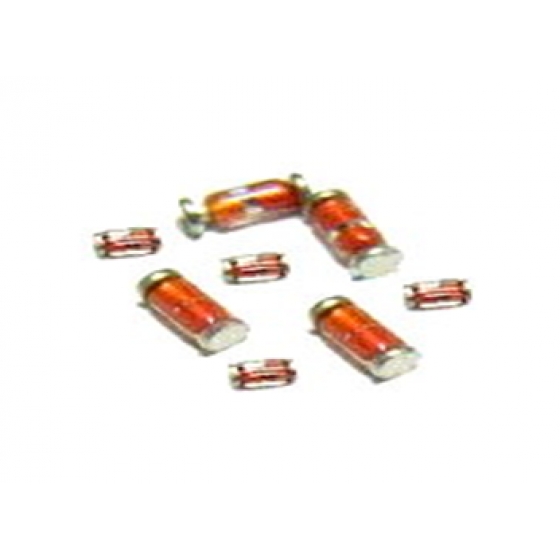

●The UDS Series is a thermistor sensor in a DO 35 SMD Diode package.
●It is highly reliable and offer a wide operating range of -50℃ to250℃.
●Excellent thermal cycle endurance.
●They can be employed for home electric appliances and high temperature applications.
●Glass sealed body for high reliability.


SPECIFICATIONS

Temperature rating  : -40℃ to 200℃
B value : 3470K ~ 4450K
Determined by rated zero-power : Resistance at 25℃and 85℃

Resistance value at 25℃  :

5 K ohms
10 K ohms
47 K ohms
50 K ohms
100 K ohms
150 K ohms
220 K ohms
474 K ohms
1M K ohms

Dissipation constant          2.4mW/℃
Thermal time constant      Typically 15 seconds in air.
Maximum power Rating   250 mW at 25℃
Tolerance                            ±1% ±3%   ±5%

◆Order Map

Series Code Type Res. value Res. Tolerance B value
UDS SMD Diode thermistor 103 F :  1% 25℃/85℃
Temperature Sensor    at 2 5℃  10 x 10Ω H :  3%
      J :  5%
