◆特點

● A 型和B 型。

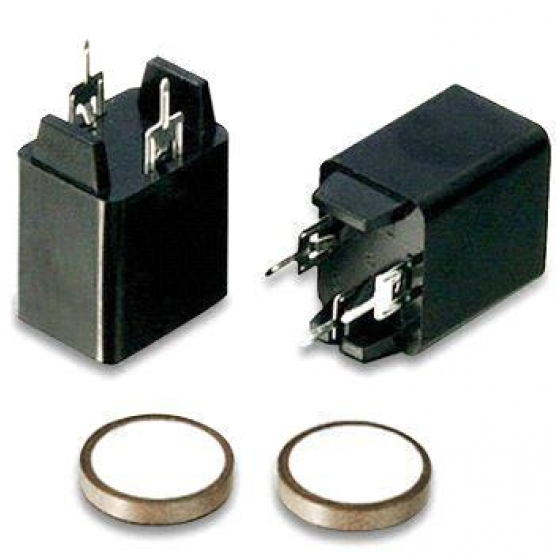

● Unix Tech的消磁PTC熱敏電阻專為彩電、顯示器等自動消磁電路而設計。
● 低剩餘電流的消磁電路熱敏電阻對大浪湧電流提供快速響應和快速恢復，
適用於所有電源。
● 酚醛外殼具有自熄性阻燃性，符合UL標準公告94V-0。








◆規格

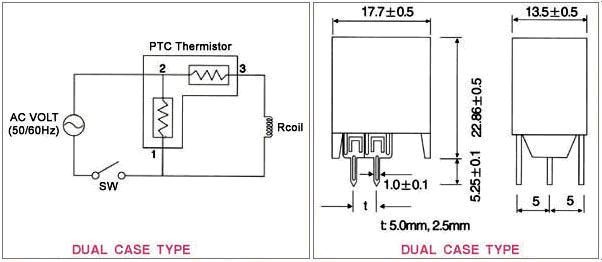

●雙箱式


Part Numbe	Nominal  Resistance  At 25 ℃ (Ω)	Rated Voltage (V)	Max. Operating Voltage(V	Current  Attenuation			Degaussing coil
				Inrush Ap-p min	After 3 Sec mAp-p max	After180Sec mAp-p max	Reference  Ω	Minimum  Ω
UPCA4R5 S	4.5	220	270	21	120(6sec)	12	20	10
UPCA5R0 Q	5	120	144	25	100(5 sec)	12	10	5
UPCA5R0 S	5	220	270	20	120(6sec)	12	20	10
UPCA7R0 S	7	120	144	20	200(5 sec)	10	15	6
UPCA7R0 S	7	220	270	20	120(6sec)	5	20	12
UPCA8R0 S	8	120	144	20	200(5 sec)	10	20	6
UPCA8R0 S	8	220	270	20	120(6sec)	5	20	10
UPCA9R0 S	9	220	270	20	100(6 sec)	3	20	10
UPCA120 S	12	220	270	25	200	3	10	10
UPCA140 S	14	220	270	25	150	3	10	10
UPCA180 S	18	220	270	20	150	3	10	10
UPCA200 S	20	220	270	18	150	3	10	10
UPCA250 S	25	220	270	15	150	3	12	10
UPCA270 S	27	220	270	15	150	3	12	10
UPCA300 S	30	220	270	13	200	3	25	10
UPCA360 S	36	220	270	10	200	3	25	10

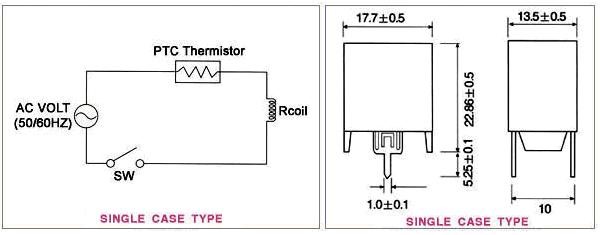

●單殼型


Part Numbe	Nominal  Resistance  At 25 ℃ (Ω)	Rated Voltage (V)	Max. Operating Voltage(V	Current  Attenuation			Degaussing coil
				Inrush Ap-p min	After 3 Sec mAp-p max	After180Sec mAp-p max	Reference  Ω	Minimum  Ω
UPCB4R5 S	4.5	220	270	21	120(6sec)	10	50	10
UPCB5R0 Q	5	120	144	25	200(5 sec)	10	50	5
UPCB5R0 S	5	220	270	20	120(6sec)	10	50	10
UPCB7R0 Q	7	120	144	20	200(5 sec)	10	50	6
UPCB7R0 S	7	220	270	20	120(6sec)	10	20	12
UPCB8R0 S	8	120	270	20	200(5 sec)	10	20	6
UPCB8R0 Q	8	220	279	20	150(6sec)	10	10	10
UPCB9R0 S	9	220	270	20	120(6 sec)	10	10	10
UPCB120 S	12	220	270	25	250	10	10	10
UPCB140 S	14	220	270	25	250	10	10	10
UPCB180 S	18	220	270	20	250	10	10	10
UPCB200 S	20	220	270	18	250	10	10	10
UPCB270 S	27	220	270	16	250	10	10	10
UPCB300 S	30	220	270	16	250	10	10	10




●雙單盒型



Part Numbe	Nominal  Resistance  At 25 ℃ (Ω)	Rated Voltage (V)	Max. Operating Voltage(V	Current  Attenuation			Degaussing coil
				Inrush Ap-p min	After 3 Sec mAp-p max	After180Sec mAp-p max	Reference  Ω	Minimum  Ω
UPCA7R0 S-A	3.5 (7*2)	220	270	26	200	50	15	12
UPCA9R0 S-A	4.5 (9*2)	220	270	22	200	50	20	10
UPCA140 S-A	7 (14*2)	220	270	25	150	50	12	10
UPCA180 S-A	9 (18*2)	220	270	22	150	50	12	10
UPCA200 S-A	10 (20*2)	220	270	20	150	50	12	10




●碟型


Part Numbe	Nominal  Resistance  At 25 ℃ (Ω)	Rated Voltage (V)	Max. Operating Voltage(V	Current  Attenuation			Degaussing coil
				Inrush Ap-p min	After 3 Sec mAp-p max	After180Sec mAp-p max	Reference  Ω	Minimum  Ω
UPDGS65R0 Q	5	120	144	25	220(5sec)	50	10	15
UPDGS67R0 Q	7	120	144	20	200(5 sec)	50	15	16
UPDGS67R0 S	7	220	270	20	150(6sec)	50	20	12
UPDGS69R0 S	9	220	270	20	120(6 sec)	50	20	10
UPDGS5140 S	14	220	270	25	250	45	10	10
UPDGS5180 S	18	220	270	20	250	45	10	10
UPDGS5200 S	20	220	270	18	250	45	10	10
UPDGS5300 S	30	220	270	16	250	35	10	10
