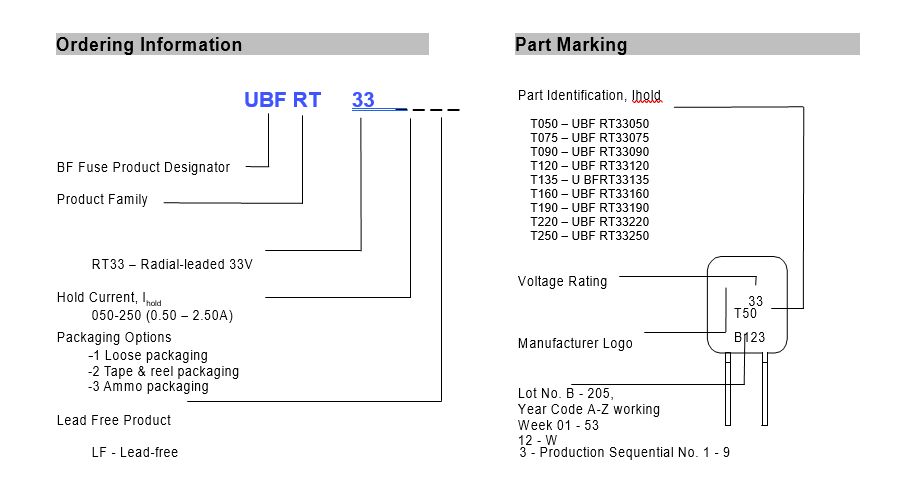

◆ UBF RT33　(33V)

◆電氣特性


Part No		Figure / Lead Option	lhold (A)	Itrip (A)	Vmax (V)	Imax (A)	Pd typ (W)	Max. (A)	Time-to-trip  (s)	R min (Ω)	R1 Max  (Ω)
UBF	RT33050	Fig. 1, Ø0.51, Sn/CuFe	0.50	1.00	33	40	0.67	5.0	2.25	0.140	0.048
UBF	RT33075	Fig. 1, Ø0.51, Sn/CuFe	0.75	1.50	33	40	0.71	4.0	3.75	0.115	0.368
UBF	RT33090	Fig. 1, Ø0.51, Sn/CuFe	0.90	1.80	33	40	0.74	3.5	4.50	0.090	0.228
UBF	RT33120	Fig. 1, Ø0.51, Sn/CuFe	1.20	2.30	33	40	0.78	3.5	6.00	0.074	0.180
UBF	RT33135	Fig. 1, Ø0.51, Sn/CuFe	1.35	2.50	33	40	0.84	4.5	6.75	0.059	0.143
UBF	RT33160	Fig. 1, Ø0.51, Sn/CuFe	1.60	2.75	33	40	0.86	4.5	8.00	0.041	0.131
UBF	RT33190	Fig. 2, Ø0.81, Sn/CuFe	1.90	3.00	33	40	0.90	3.5	9.50	0.045	0.092
UBF	RT33220	Fig. 2, Ø0.81, Sn/CuFe	2.20	3.50	33	40	0.95	6.5	11.00	0.025	0.080
UBF	RT33250	Fig. 2, Ø0.81, Sn/CuFe	2.50	4.00	33	40	0.99	8.0	12.50	0.020	0.064



◆解說


Ihold	Hold current is the maximum current that UB Fuse can pass through without interruption at 20°C unless otherwise specified.
Itrip	Trip current is the minimum current that will switch the device from low resistance state to high resistance state at 20°C unless specified.
Vmax	The maximum voltage device can withstand without damage at rated current.
Imax	The maximum current device can withstand without damage at rated voltage.
Pd	The power dissipated from device when in the tripped state at 20°C unless otherwise specified.
R min	The minimum resistance of device as received from the factory at 20°C unless otherwise specified.
R max	The maximum resistance of device as received from the factory at 20°C unless otherwise specified.
R1max	The maximum resistance of device when measured one hour post trip at 20°C unless otherwise specified.
Max. Time-to-trip	The maximum time for device to trip at specified current ratings at 20°C unless otherwise specified.



◆ 環境特性


Test	Test Conditions	Resistance Change
Passive Aging	+85°C, 1000 hours	±5% typical resistance change
Humidity Aging	+85°C, 85% R.H., 7 days	±5% typical resistance change
Thermal Shock	+85°C to -40°C, 10 times MIL-STD-202, Method 107G	±5% typical resistance change
Vibration	MIL-STD-883C, Condition A	No change
Solvent resistance	MIL-STD-202, Method 215	No change

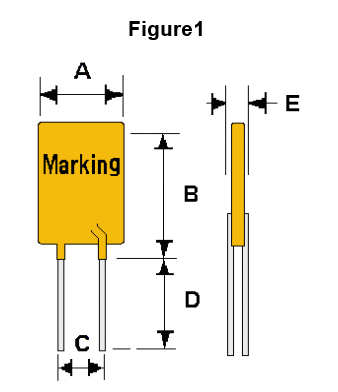

◆外形尺寸


	A	B	C	D	E	F
Part No	Max.	Max.	Typical	Min.	Max.	Typical
UBF RT33050	7.4	12.2	5.1	7.6	3.0	1.1
UBF RT33075	7.4	12.2	5.1	7.6	3.0	1.1
UBF RT33090	7.4	12.2	5.1	7.6	3.0	1.1
UBF RT33120	7.4	12.2	5.1	7.6	3.0	1.1
UBF RT33135	7.4	14.2	5.1	7.6	3.0	1.1
UBF RT33160	7.4	14.0	5.1	7.6	3.0	1.1
UBF RT33190	9.0	13.5	5.1	7.6	3.0	1.1
UBF RT33220	10.0	17.5	5.1	7.6	3.0	1.1
UBF RT33250	10.0	19.5	5.1	7.6	3.0	1.1




●注意事項：

所有圖紙均未按比例繪製，佈局可能有所不同。
除非另有說明，否則所有零件尺寸均以毫米為單位。
徑向引線部件不適用於回流焊


●鉛材料：

UBF RT33050 – 250, Tin plated Copper Steel, Ø0.51mm / 0.205mm2  / 24 AWG

●絕緣材料：固化阻燃環氧聚合物，符合UL94V-0

●機構批准：


UL File Number	E 119550
c-UL File Number	E 119550
TUV File Number	Pending

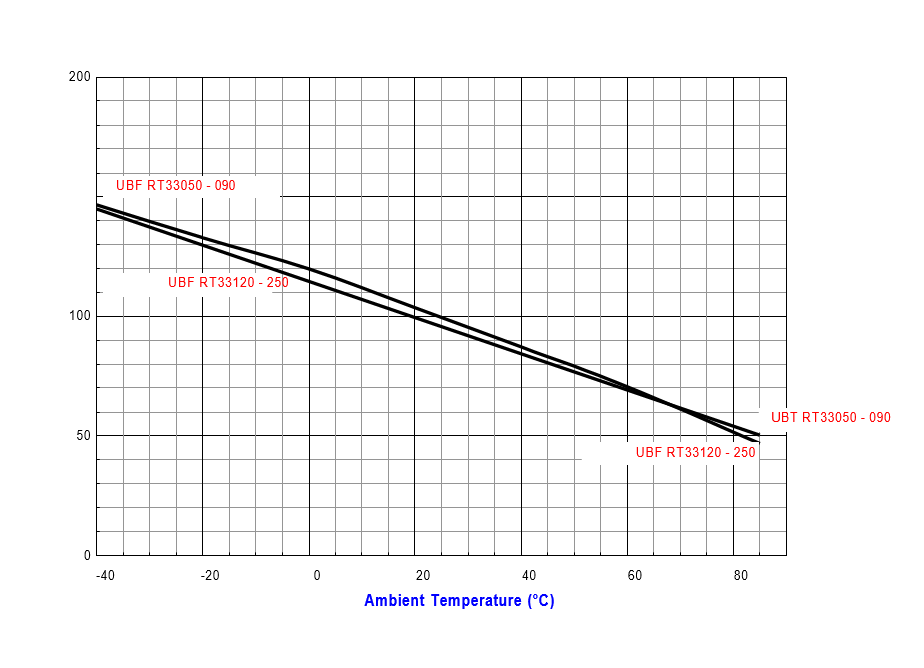

◆典型熱降額圖 - Ihold (A)


Part No	-40	-20	0	20	40	60	85
UBF RT33050	0.74	0.68	0.60	0.50	0.45	0.39	0.32
UBF RT33075	1.11	1.01	0.90	0.75	0.68	0.59	0.48
UBF RT33090	1.33	1.22	1.08	0.90	0.81	0.70	0.58
UBF RT33120	1.78	1.62	1.62	1.35	1.22	0.94	0.77
UBF RT33135	2.00	1.82	1.62	1.35	1.22	1.05	0.86
UBF RT33160	2.37	2.16	1.92	1.60	1.44	1.25	1.02
UBF RT33190	2.81	2.57	2.28	1.90	1.71	1.48	1.22
UBF RT33220	3.26	2.97	2.64	2.20	1.98	1.72	1.41
UBF RT33250	3.70	3.38	3.00	2.50	2.25	1.95	1.60

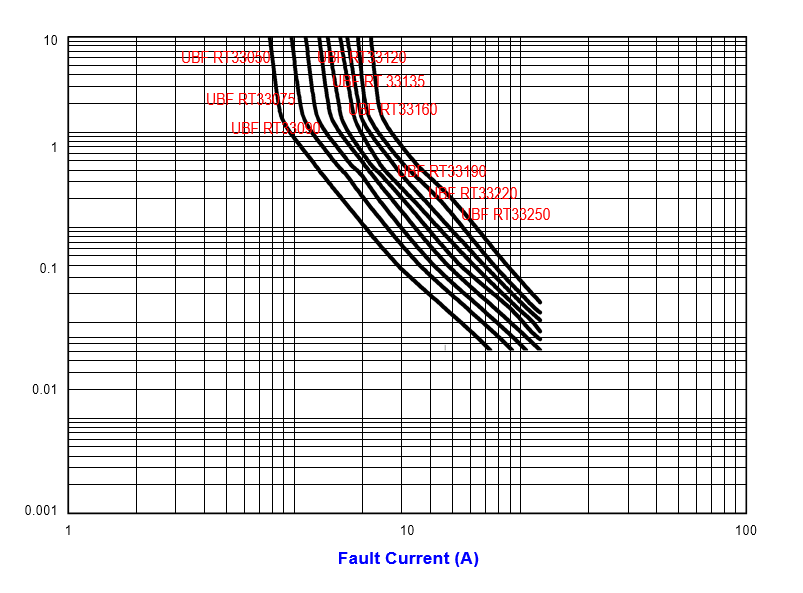

◆20°C 時的典型跳閘時間曲線







◆包裝信息


Part No	-1 Loose Pack Quantity	-2 Tape & Reel Quantity	-3 Ammo Pack Quantity
UBF RT33050	500	3000	2000
UBF RT33075	500	3000	2000
UBF RT33090	500	3000	2000
UBF RT33120	500	3000	2000
UBF RT33135	500	2500	2000
UBF RT33160	500	2500	2000
UBF RT33190	500	2000	2000
UBF RT33220	500	2000	2000
UBF RT33250	500	1500	1500
