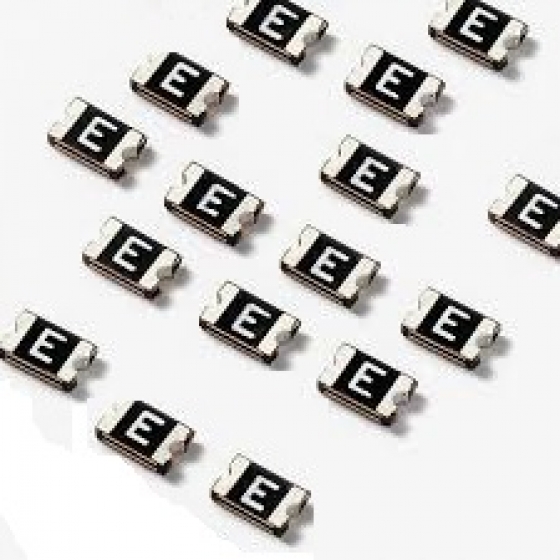

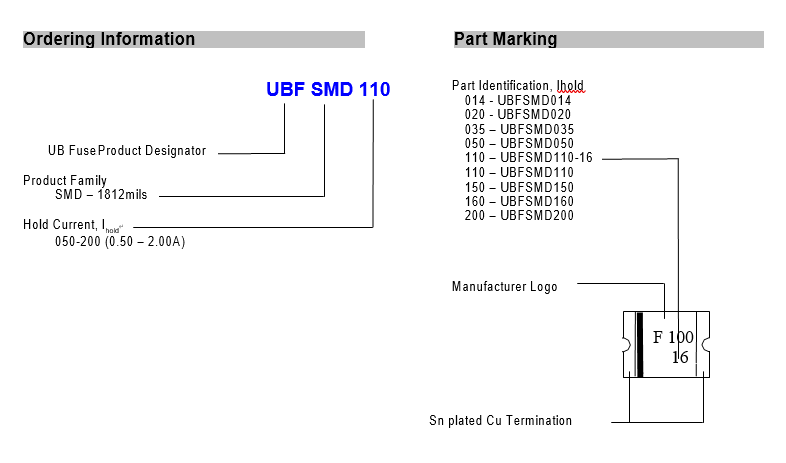

◆ UBF SMD　(1812)

◆電氣特性


Part No		lhold (A)	Itrip (A)	Vmax (V)	Imax (A)	Pd typ (W)	Max. (A)	Time-to-trip  (s)	R min (Ω)	R1 Max  (Ω)
UBF	SMD010	0.10	0.30	60	10	0.8	8.00	0.020	1.600	15.00
UBF	SMD014	0.14	0.30	60	10	0.8	8.00	0.008	1.200	6.500
UBF	SMD020	0.20	0.40	30	10	0.8	8.00	0.020	0.800	5.000
UBF	SMD035	0.35	0.70	16	40	0.8	8.00	0.100	0.320	1.500
UBF	SMD050	0.50	1.00	16	40	0.8	8.00	0.150	0.150	1.000
UBF	SMD075	0.75	1.50	16	40	0.8	8.00	0.200	0.110	0.450
UBF	SMD075/24	0.75	1.50	24	40	1.0	8.00	0.200	0.110	0.290
UBF	SMD075/33	0.75	1.50	33	40	1.0	8.00	0.200	0.110	0.400
UBF	SMD110	1.10	2.20	8	100	0.8	8.00	0.300	0.040	0.210
UBF	SMD110/16	1.10	1.95	16	100	0.8	8.00	0.500	0.040	0.180
UBF	SMD110/24	1.10	2.20	24	100	1.0	8.00	0.500	0.060	0.200
UBF	SMD125	1.25	2.50	6	40	0.8	8.00	0.400	0.050	0.140
UBF	SMD150	1.50	3.00	8	100	0.8	8.00	0.500	0.040	0.110
UBF	SMD150/12	1.50	3.00	12	100	1.0	8.00	0.500	0.040	0.110
UBF	SMD150/24	1.50	3.00	24	100	1.0	8.00	0.150	0.040	0.120
UBF	SMD160	1.60	3.20	8	100	0.8	8.00	0.500	0.030	0.100
UBF	SMD160/12	1.60	3.20	12	100	1.0	8.00	1.000	0.030	0.100
UBF	SMD160/16	1.60	3.20	16	100	1.0	8.00	1.000	0.030	0.100
UBF	SMD200	2.00	3.50	8	100	1.0	8.00	2.000	0.020	0.070
UBF	SMD260	2.60	5.00	6	100	1.0	8.00	2.500	0.015	0.047
UBF	SMD260/13	2.60	5.00	13.2	100	1.3	8.00	5.000	0.015	0.050
UBF	SMD260/16	2.60	5.00	16	100	1.3	8.00	5.000	0.015	0.050
UBF	SMD300	3.00	5.00	6	100	1.0	8.00	4.000	0.012	0.040



◆解說


Ihold	保持電流是 UB Fuse 在 20°C 時可以不間斷通過的最大電流，除非另有說明。
Itrip	跳閘電流是在 20°C 時將器件從低電阻狀態切換到高電阻狀態的最小電流，除非另有說明。
Vmax	器件在額定電流下可以承受而不損壞的最大電壓。
Imax	器件在額定電壓下所能承受而不損壞的最大電流。
Pd	除非另有說明，否則設備在 20°C 時處於跳閘狀態時消耗的功率。
R min	除非另有說明，否則為 20°C 時從工廠收到的器件的最小電阻。
R max	除非另有說明，否則為 20°C 時從工廠收到的設備的最大電阻。
R1max	除非另有說明，否則在 20°C 下跳閘後一小時測得的設備最大電阻。
Max. Time-to-trip	除非另有說明，否則設備在 20°C 下在指定電流額定值下跳閘的最長時間。
Ihold	Hold current is the maximum current that UB Fuse can pass through without interruption at 20°C unless otherwise specified.
Itrip	Trip current is the minimum current that will switch the device from low resistance state to high resistance state at 20°C unless specified.
Vmax	The maximum voltage device can withstand without damage at rated current.
Imax	The maximum current device can withstand without damage at rated voltage.
Pd	The power dissipated from device when in the tripped state at 20°C unless otherwise specified.
R min	The minimum resistance of device as received from the factory at 20°C unless otherwise specified.
R max	The maximum resistance of device as received from the factory at 20°C unless otherwise specified.
R1max	The maximum resistance of device when measured one hour post trip at 20°C unless otherwise specified.
Max. Time-to-trip	The maximum time for device to trip at specified current ratings at 20°C unless otherwise specified.



◆外形尺寸


	A		B		C		D		E
Part No UBF　SMD	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.
	4.37	4.37	3.07	3.41	0.60	0.62	0.30	--	0.25	--



●注意事項：

所有圖紙均未按比例繪製，佈局可能有所不同。
除非另有說明，否則所有零件尺寸均以毫米為單位。
端子材料為鍍錫 (Sn) 的銅 (Cu)。

●包裝：每卷2000個

●機構批准：


UL File Number	E 119550
c-UL File Number	E 119550
TUV File Number	Pending

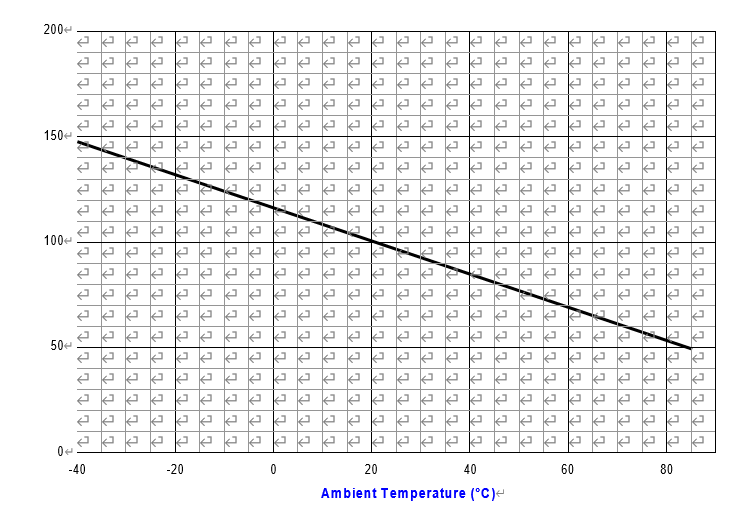

◆典型熱降額圖 - Ihold (A)


Part No	-40	-20	0	20	40	60	85
UBF SMD050	0.76	0.67	0.55	0.50	0.45	0.35	0.23
UBF SMD075	1.10	0.99	0.87	0.75	0.63	0.49	0.35
UBF SMD110	1.60	1.45	1.28	1.10	0.92	0.71	0.52
UBF SMD150	2.30	2.05	1.77	1.50	1.23	0.95	0.61










◆ 環境特性


Test	Test Conditions	Resistance Change
Passive Aging	+85°C, 1000 hours	±10% typical resistance change
Humidity Aging	+85°C, 85% R.H., 7 days	±10% typical resistance change
Thermal Shock	+85°C to -40°C, 10 times MIL-STD-202, Method 107G	±10% typical resistance change
Vibration	MIL-STD-883C, Condition A	No change
Solvent resistance	MIL-STD-202, Method 215	No change

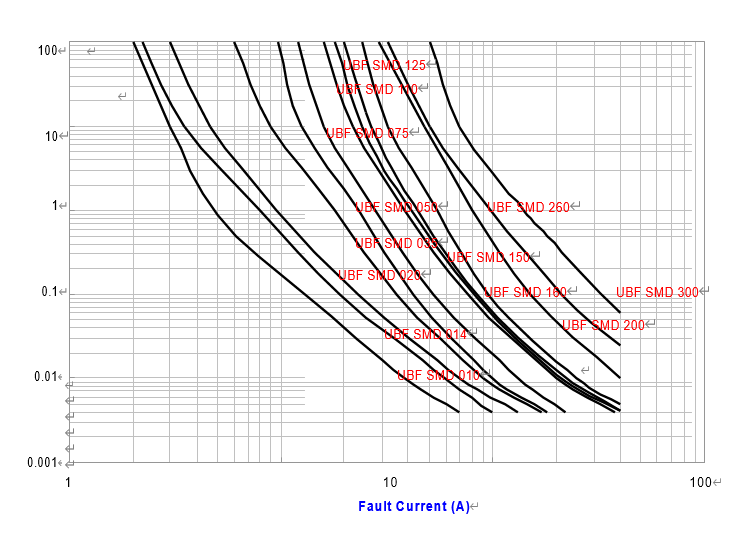

◆23°C 時的典型跳閘時間曲線











◆ 推薦的回流曲線和焊盤尺寸




Part No	R	S	T
UBF SMD010	3.15	1.78	3.45
UBF SMD014	3.15	1.78	3.45
UBF SMD020	3.15	1.78	3.45
UBF SMD050	3.15	1.78	3.45
UBF SMD075	3.15	1.78	3.45
UBF SMD110	3.15	1.78	3.45
UBF SMD125	3.15	1.78	3.45
UBF SMD150	3.15	1.78	3.45
UBF SMD160	3.15	1.78	3.45
UBF SMD200	3.15	1.78	3.45
UBF SMD260	3.15	1.78	3.45
UBF SMD300	3.15	1.78	3.45

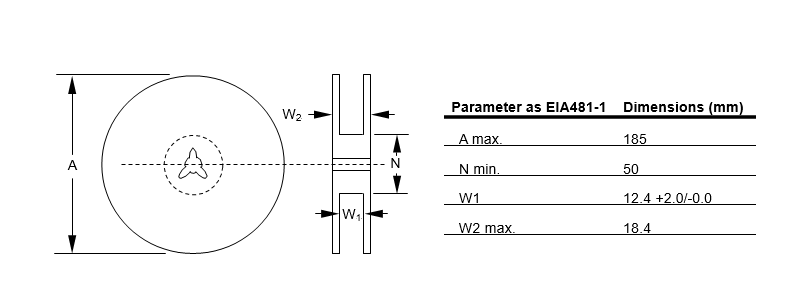

◆ 符合 EIA481-1 的捲帶包裝規範




Parameter as EIA481-1	Dimensions (mm)
W	12.00 ± 0.30
P0	4.00 ± 0.10
P1	8.00 ± 0.10
P3	2.00 ± 0.05
A0	3.50 ± 0.23
B0	5.10 ± 0.15
B1max	8.2
D0	1.50 +0.10/-0.00
F	5.50 ± 0.05
E1	1.75 ± 0.10
E2min	10.25
T max	0.6
T1max	0.1
K0	0.90 ± 0.15
