| Part No | lhold (A) | Itrip (A) |
Vmax (V) |
Imax (A) |
Pd typ (W) |
Max. (A) |

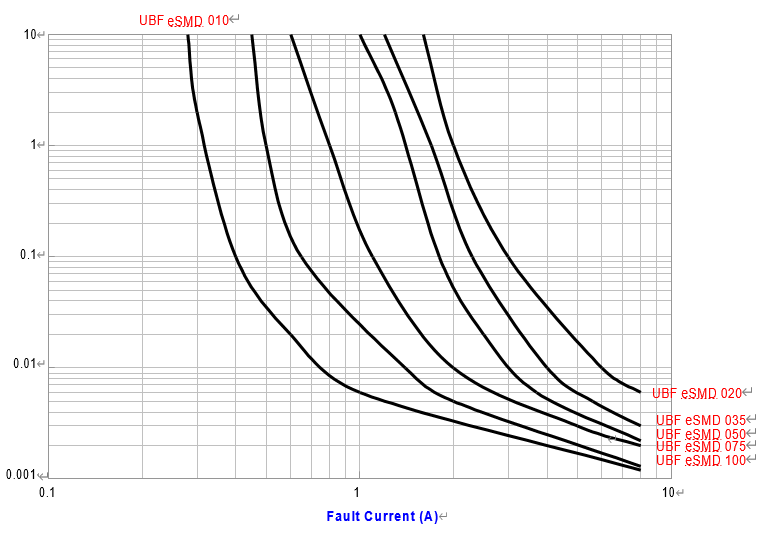

Time-to-trip (s) |
R min (Ω) |
R1 Max (Ω) |
|
| UBF | eSMD010 | 0.10 | 0.30 | 15 | 100 | 0.5 | 0.50 | 1.50 | 0.700 | 6.000 |
| UBF | eSMD020 | 0.20 | 0.50 | 9 | 100 | 0.5 | 8.00 | 0.02 | 0.400 | 3.500 |
| UBF | eSMD035 | 0.35 | 0.75 | 6 | 100 | 0.5 | 8.00 | 0.20 | 0.250 | 1.200 |
| UBF | eSMD050 | 0.50 | 1.00 | 6 | 100 | 0.5 | 8.00 | 0.10 | 0.150 | 0.850 |
| UBF | eSMD075 | 0.75 | 1.50 | 6 | 40 | 0.6 | 8.00 | 0.20 | 0.090 | 0.350 |
| UBF | eSMD100 | 1.00 | 1.95 | 6 | 40 | 0.6 | 8.00 | 0.30 | 0.600 | 0.210 |
| Ihold | Hold current is the maximum current that UB Fuse can pass through without interruption at 20°C unless otherwise specified. |
| Itrip | Trip current is the minimum current that will switch the device from low resistance state to high resistance state at 20°C unless specified. |
| Vmax | The maximum voltage device can withstand without damage at rated current. |
| Imax | The maximum current device can withstand without damage at rated voltage. |
| Pd | The power dissipated from device when in the tripped state at 20°C unless otherwise specified. |
| R min | The minimum resistance of device as received from the factory at 20°C unless otherwise specified. |
| R max | The maximum resistance of device as received from the factory at 20°C unless otherwise specified. |
| R1max | The maximum resistance of device when measured one hour post trip at 20°C unless otherwise specified. |
| Max. Time-to-trip |
The maximum time for device to trip at specified current ratings at 20°C unless otherwise specified. |

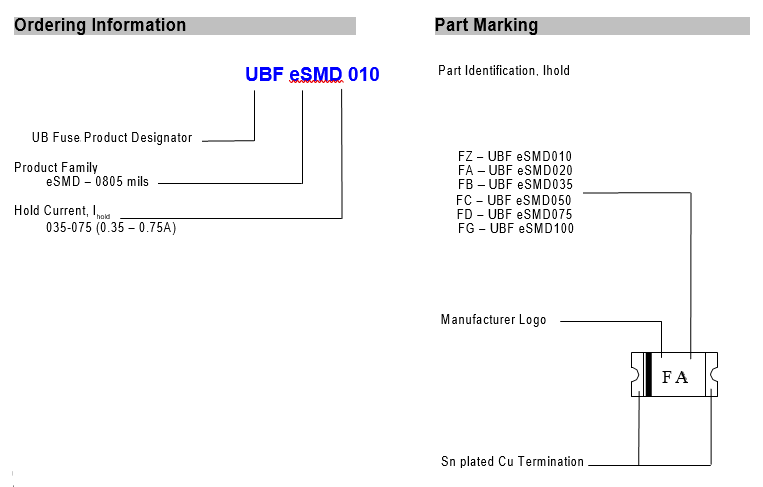

| A | B | C | D | E | ||||||
| Part No UBF eSMD |
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
| 2.00 | 2.30 | 1.20 | 1.50 | 0.30 | 1.50 | 0.20 | 0.60 | 0.10 | 0.45 | |
| UL File Number | E 119550 |
| c-UL File Number | E 119550 |
| TUV File Number | Pending |

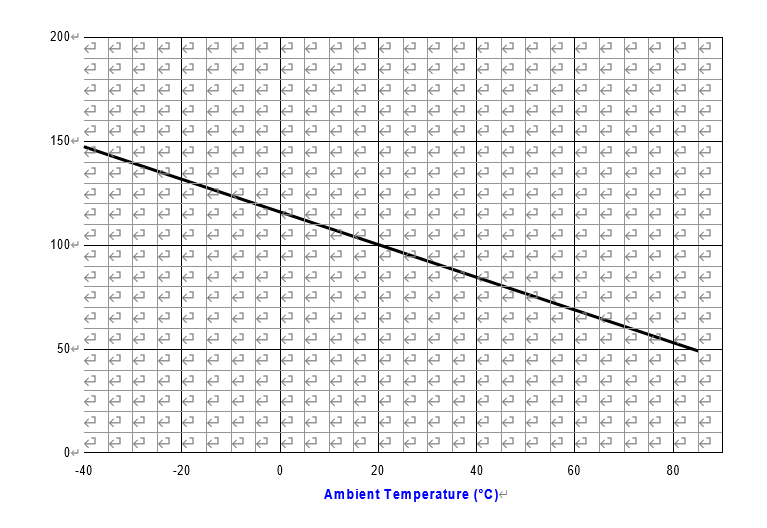

| Part No | -40 | -20 | 0 | 20 | 40 | 60 | 85 |
| UBF eSMD010 | 0.15 | 0.13 | 0.12 | 0.10 | 0.08 | 0.07 | 0.05 |
| UBF eSMD020 | 0.29 | 0.26 | 0.23 | 0.20 | 0.17 | 0.14 | 0.11 |
| UBF eSMD035 | 0.51 | 0.46 | 0.41 | 0.35 | 0.29 | 0.24 | 0.19 |
| UBF eSMD050 | 0.73 | 0.65 | 0.58 | 0.50 | 0.42 | 0.35 | 0.27 |
| UBF eSMD075 | 1.09 | 0.98 | 0.87 | 0.75 | 0.63 | 0.52 | 0.40 |
| UBF eSMD100 | 1.45 | 1.30 | 1.61 | 1.00 | 0.84 | 0.69 | 0.53 |
| Test | Test Conditions | Resistance Change |
| Passive Aging | +85°C, 1000 hours | ±10% typical resistance change |
| Humidity Aging | +85°C, 85% R.H., 7 days | ±10% typical resistance change |
| Thermal Shock | +85°C to -40°C, 10 times MIL-STD-202, Method 107G |
±10% typical resistance change |
| Vibration | MIL-STD-883C, Condition A | No change |
| Solvent resistance | MIL-STD-202, Method 215 | No change |
| Part No | R | S | T |
| UBF eSMD010 | 1.50 | 1.00 | 1.20 |
| UBF eSMD020 | 1.50 | 1.00 | 1.20 |
| UBF eSMD035 | 1.50 | 1.00 | 1.20 |
| UBF eSMD050 | 1.50 | 1.00 | 1.20 |
| UBF eSMD075 | 1.50 | 1.00 | 1.20 |
| UBF eSMD100 | 1.50 | 1.00 | 1.20 |
| Parameter as EIA481-1 | Dimensions (mm) |
| W | 12.00 ± 0.30 |
| P0 | 4.00 ± 0.10 |
| P1 | 8.00 ± 0.10 |
| P3 | 2.00 ± 0.05 |
| A0 | 3.50 ± 0.23 |
| B0 | 5.10 ± 0.15 |
| B1max | 8.2 |
| D0 | 1.50 +0.10/-0.00 |
| F | 5.50 ± 0.05 |
| E1 | 1.75 ± 0.10 |
| E2min | 10.25 |
| T max | 0.6 |
| T1max | 0.1 |
| K0 | 0.90 ± 0.15 |
