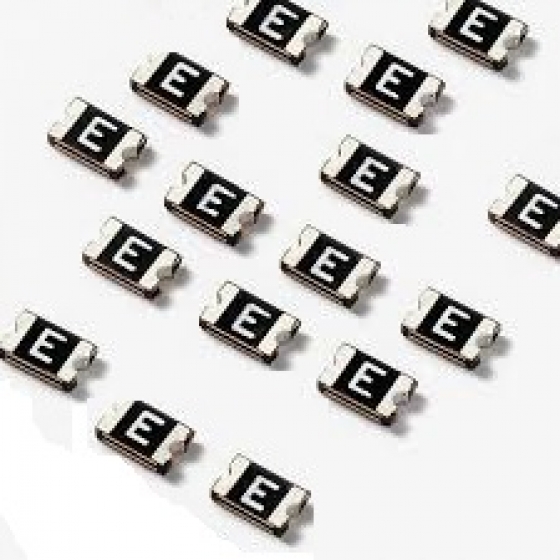

◆ UBF dSMD　(0603)

◆電氣特性


Part No		lhold (A)	Itrip (A)	Vmax (V)	Imax (A)	Pd typ (W)	Max. (A)	Time-to-trip  (s)	R min (Ω)	R1 Max  (Ω)
UBF	dSMD005	0.05	0.15	40	15	0.5	0.50	0.10	3.80	30.00
UBF	dSMD010	0.10	0.25	40	15	0.5	0.70	0.10	0.90	8.00
UBF	dSMD012	0.12	0.30	40	9	0.5	0.80	0.10	1.10	5.80
UBF	dSMD016	0.16	0.40	40	9	0.5	1.00	0.10	1.00	4.20
UBF	dSMD020	0.20	0.45	40	9	0.6	2.00	0.10	0.55	3.50



◆解說


Ihold	Hold current is the maximum current that UB Fuse can pass through without interruption at 20°C unless otherwise specified.
Itrip	Trip current is the minimum current that will switch the device from low resistance state to high resistance state at 20°C unless specified.
Vmax	The maximum voltage device can withstand without damage at rated current.
Imax	The maximum current device can withstand without damage at rated voltage.
Pd	The power dissipated from device when in the tripped state at 20°C unless otherwise specified.
R min	The minimum resistance of device as received from the factory at 20°C unless otherwise specified.
R max	The maximum resistance of device as received from the factory at 20°C unless otherwise specified.
R1max	The maximum resistance of device when measured one hour post trip at 20°C unless otherwise specified.
Max. Time-to-trip	The maximum time for device to trip at specified current ratings at 20°C unless otherwise specified.



◆外形尺寸


	A		B		C		D		E
Part No UBF　dSMD	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.
	1.40	1.80	0.45	1.00	0.35	0.75	0.10	0.50	0.08	0.40



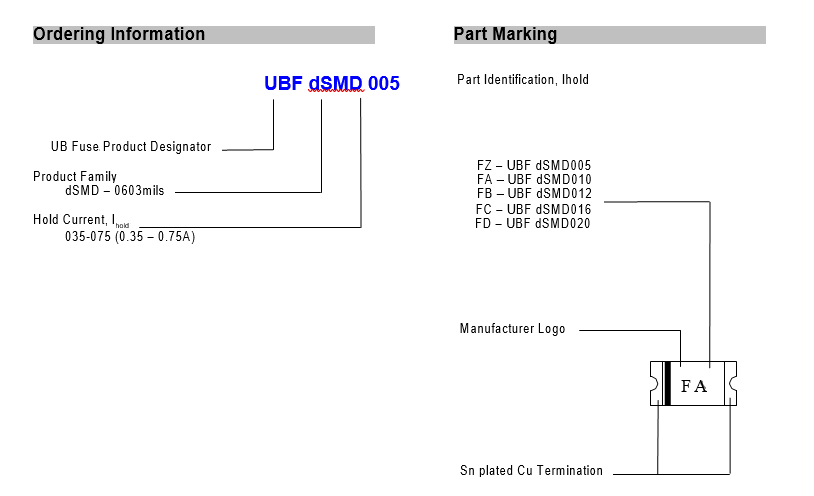

●注意事項：

所有圖紙均未按比例繪製，佈局可能有所不同。
除非另有說明，否則所有零件尺寸均以毫米為單位。
端子材料為鍍錫 (Sn) 的銅 (Cu)。

●包裝：每卷4000個

●機構批准：


UL File Number	E 119550
c-UL File Number	E 119550
TUV File Number	Pending

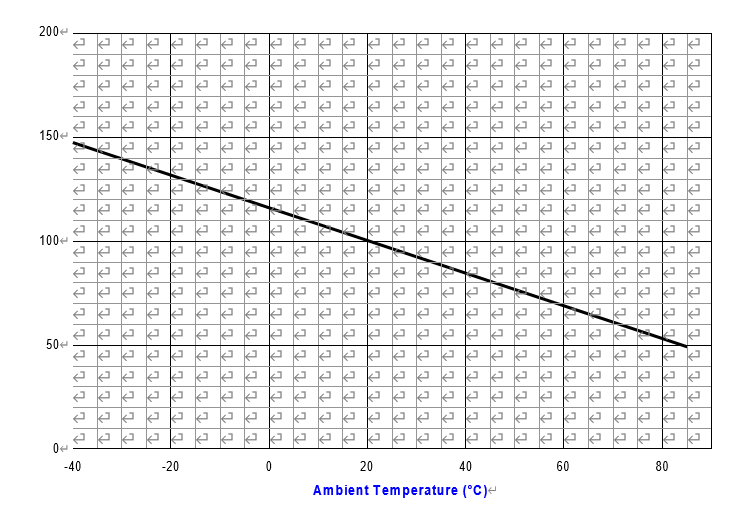

◆典型熱降額圖 - Ihold (A)


Part No	-40	-20	0	20	40	60	85
UBF dSMD005	0.70	0.07	0.06	0.05	0.04	0.03	0.02
UBF dSMD010	0.15	0.14	0.12	0.10	0.08	0.06	0.04
UBF dSMD012	0.18	0.16	0.14	0.12	0.10	0.07	0.04
UBF dSMD016	0.24	0.22	0.19	0.16	0.13	0.10	0.06
UBF dSMD020	0.29	0.27	0.24	0.20	0.16	0.12	0.07





◆ 環境特性


Test	Test Conditions	Resistance Change
Passive Aging	+85°C, 1000 hours	±10% typical resistance change
Humidity Aging	+85°C, 85% R.H., 7 days	±10% typical resistance change
Thermal Shock	+85°C to -40°C, 10 times MIL-STD-202, Method 107G	±10% typical resistance change
Vibration	MIL-STD-883C, Condition A	No change
Solvent resistance	MIL-STD-202, Method 215	No change

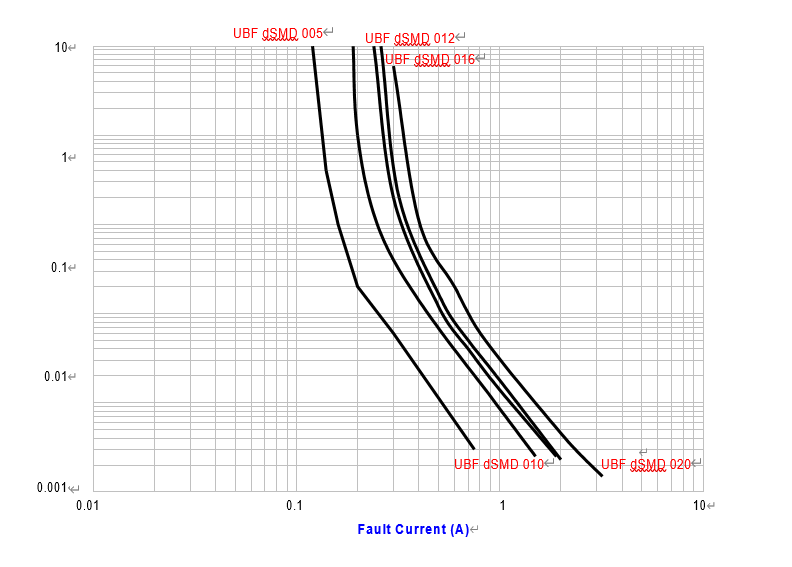

◆23°C 時的典型跳閘時間曲線






◆ 推薦的回流曲線和焊盤尺寸




Part No	R	S	T
UBF dSMD005	0.80	0.60	0.80
UBF dSMD010	0.80	0.60	0.80
UBF dSMD012	0.80	0.60	0.80
UBF dSMD016	0.80	0.60	0.80
UBF dSMD020	0.80	0.60	0.80









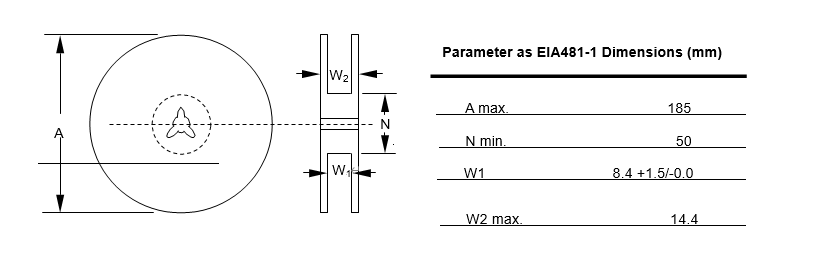

◆ 符合 EIA481-1 的捲帶包裝規範




Parameter as EIA481-1	Dimensions (mm)
W	12.00 ± 0.30
P0	4.00 ± 0.10
P1	8.00 ± 0.10
P3	2.00 ± 0.05
A0	3.50 ± 0.23
B0	5.10 ± 0.15
B1max	8.2
D0	1.50 +0.10/-0.00
F	5.50 ± 0.05
E1	1.75 ± 0.10
E2min	10.25
T max	0.6
T1max	0.1
K0	0.90 ± 0.15
