◆FEATURES

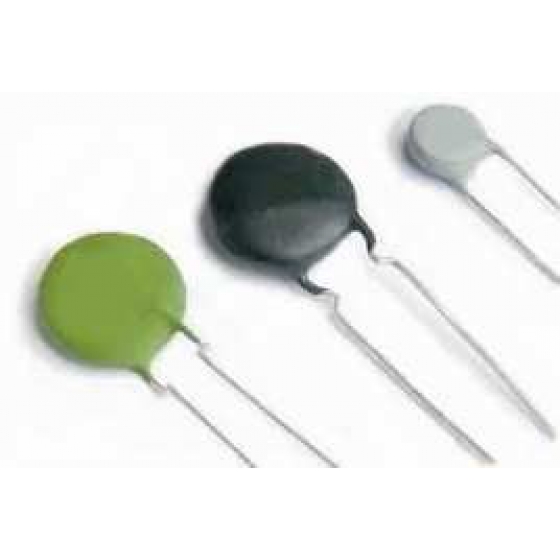

● 5mm,8mm 10mm 13 mm 15mm 20mm Epoxy coated Disc Type.
● Positive Temperature Coefficient(PTC) thermistors these Barium-Titanate-base switching.
● Type UPD Series thermistors exhibit a very large resistance increase over a specific temperature level are specially designed for color TV/monitors degaussing over-current /over-temperature protection, are suppression, motor-starter, temperature compensation and general circuits …..etc.

◆SPECIFICATIONS

●30V type( Max. Voltage 30V)    T: Max 4mm


Part Number		Diameter ψD Max (mm)	Curie Point  (℃）	Int Max   At 25 ℃ (mA)	It Min At 25 ℃ (mA)	Max Current (A)	Resistance At 25 ℃ ± 30% Ω
UPDBS6300 □ □	7		60±10	33	65	0.5	30
UPDDS6120 □ □	10			65	130	0.5	12
UPDES68R0 □ □	12			75	150	1	8
UPDGS65R0 □ □	15			145	295	0.6	5
UPDJS64R0 □ □	17			182	364	0.7	4
UPDBS8120 □ □	7		80±10	65	130	0.5	12
UPDDS85R0 □ □	10			135	270	0.6	5
UPDES84R0 □ □	12			150	300	0.7	4
UPDGS82R5 □ □	15			312	625	1.5	2.5
UPDJS81R5 □ □	17			360	750	2	1.5
UPDBB0300 □ □	7			35	70	0.5	30
UPDDB04R0 □ □	10		100±10	235	470	0.7	4
UPDDB02R5 □ □	12			355	710	1.2	2.5
UPDGB02R0 □ □	15			360	720	1.5	2
UPDJB01R5 □ □	17			475	950	2	1.5
UPDAB22R5 □ □	4.5		120±10	225	450	1.5	2.5
UPDBB2100 □ □	7			140	280	1.0	10
UPDBB24R0 □ □	10			250	500	1.0	4
UPDEB22R5 □ □	12			390	780	1.2	2.5
UPGEB22R0 □ □	15			505	1010	1.5	2
UPDJB21R5 □ □	17			520	1040	2	1.5
UPDBS6101 □ □	7		60±10	15	30	0.3	100
UPDDS6150 □ □	10			65	130	1.5	15
UPDES6120 □ □	12			85	170	2	12
UPDGS69R0 □ □	15			140	280	3	9
UPDJS66R0 □ □	17			160	320	4	6
UPDBS8250 □ □	7			50	110	1	25
UPDDS8100 □ □	10			115	230	2.5	10




●80V type( Max. Voltage 80V)    T: Max 5mm


Part Number		Diameter ψD Max (mm)	Curie Point  (℃）	Int Max   At 25 ℃ (mA)	It Min At 25 ℃ (mA)	Max Current (A)	Resistance At 25 ℃ ± 30% Ω
UPDES88R0 □ □	12		80±10	135	270	3	8
UPDGS85R0 □ □	15			260	520	4	5
UPDJS84R0 □ □	17			380	560	5.5	4
UPDBB0250 □ □	7		100±10	85	165	1	25
UPDDB0120 □ □	10			137	275	2	12
UPDEB09R0 □ □	12			180	365	3	9
UPDGB05R0 □ □	15			330	580	4	5
UPDJB04R0 □ □	17			350	780	5.5	4
UPDBB2250 □ □	7		120±10	105	210	1	25
UPDDB2150 □ □	10			137	275	1.5	15
UPDEB2100 □ □	12			210	420	3	10
UPDGB25R0□ □	15			340	680	4	5
UPDJB24R0 □ □	17			480	960	5.5	4




●120V type( Max. Voltage 120V)   T: Max 5mm


Part Number		Diameter ψD Max (mm)	Curie Point  (℃）	Int Max   At 25 ℃ (mA)	It Min At 25 ℃ (mA)	Max Current (A)	Resistance At 25 ℃ ± 30% Ω
UPDBS6700 □ □	7		60±10	20	40	0.4	70
UPDDS6200 □ □	10			62	125	0.5	20
UPDES6150 □ □	12			85	170	1.5	15
UPDGS68R0 □ □	15			160	320	2.2	8
UPDJS65R0 □ □	17			225	450	4.1	5
UPDBS8300 □ □	7		80±10	55	110	0.5	30
UPDDS8120  □ □	10			117	235	1	12
UPDES89R0 □ □	12			150	300	1.5	9
UPDGS85R0 □ □	15			285	570	2.2	5
UPDJS84R0 □ □	17			350	700	4.1	4
UPDBB0300 □ □	7		100±10	75	150	0.5	30
UPDDB0150 □ □	10			125	250	1	15
UPDEB0100 □ □	12			185	370	1.5	10
UPDGB06R0 □ □	15			330	660	2.2	6
UPDJB05R0 □ □	17			350	700	4.1	5
UPDDB2450 □ □	7		120±10	70	135	0.5	45
UPDDB2200 □ □	10			130	280	1	20
UPDEB2150 □ □	12			175	350	1.5	15
UPDGB29R0 □ □	15			300	600	2.2	9
UPDJB27R0 □ □	17			350	700	4.1	7





●220V type( Max. Voltage 220V)   T: Max 5mm


Part Number		Diameter ψD Max (mm)	Curie Point  (℃）	Int Max   At 25 ℃ (mA)	It Min At 25 ℃ (mA)	Max Current (A)	Resistance At 25 ℃ ± 30% Ω
UPDBS6700 □ □	7		60±10	25	50	0.4	70
UPDDS6300 □ □	10			55	110	0.5	30
UPDES6200 □ □	12			78	160	1.5	25
UPDGS6150 □ □	15			210	220	2.2	15
UPDJS6100 □ □	17			130	260	4.1	10
UPDBS8300 □ □	7		80±10	50	100	0.5	30
UPDDS8150 □ □	10			100	200	1	15
UPDES8100 □ □	12			150	300	1.5	10
UPDGS87R0 □ □	15			265	530	2.2	7
UPDJS85R0 □ □	17			300	600	4.1	5
UPDBB0400 □ □	7		100±10	60	120	0.5	40
UPDDB0200 □ □	10			120	240	1	20
UPDEB0120 □ □	12			180	360	1.5	12
UPDGB7R0 □ □	15			285	570	2.2	7
UPDJB05R0 □ □	17		100±10	350	700	4.1	5
UPDDB2600 □ □	7			60	120	0.5	60
UPDDB2250 □ □	10			140	280	1	25
UPDEB2190 □ □	12			173	345	1.5	19
UPDGB28R0 □ □	15			285	570	2.2	8
UPDJB26R0 □ □	17			350	700	4.1	6




◆Order Map

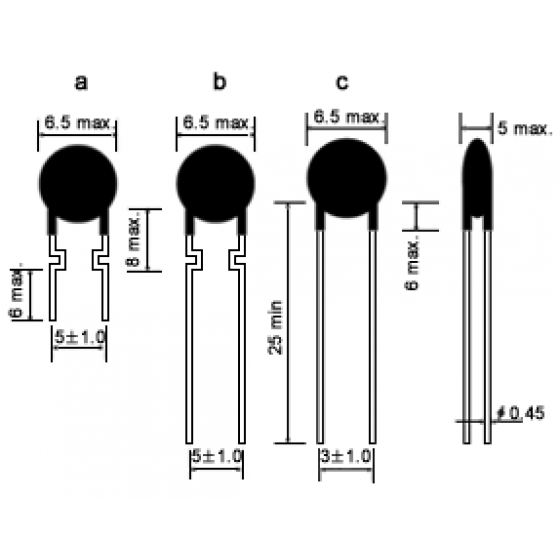

Series Code	Type Nominal Diameter	Res. Tolerance	Switching Temperature	Resistance At 25℃	Res. Tolerance	Rated Voltage	Wire Forming Type	Res. Tolerance
UPD	B :  5mm	G : 13mm	B2	220				K =±10%
Disc	D :  8mm	J : 15mm						L= ±15%
PTC thermistor	E : 10mm	K : 20mm						M =±20%
								N= ±30%
