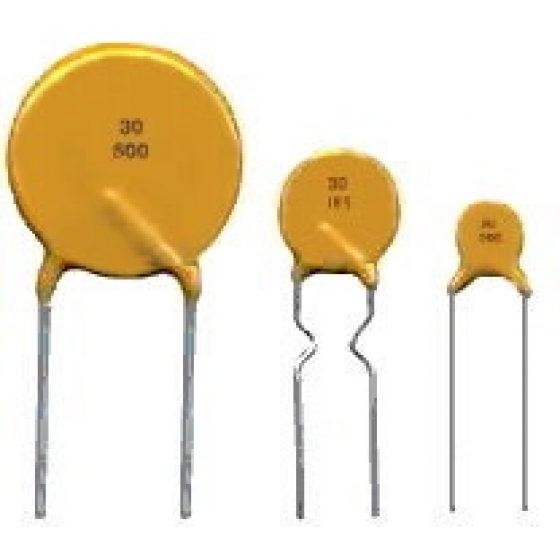

UBFRX90 Series (90V)
Details
UBF RX90 (90V)

Electrical Characteristics

Part No
Figure / Lead Option
lhold (A) Itrip
(A)
Vmax
(V)
Imax
(A)
Pd typ
(W)
Max.
(A)
Time-to-trip
 (s)
R min
(Ω)
R1 Max
 (Ω)
UBF RX90010 Fig. 1, Ø0.51, Sn/CuFe 0.10 0.20 90 40 0.38 0.50 4.0 2.50 7.50
UBF RX90015 Fig. 1, Ø0.51, Sn/CuFe 0.10 0.35 90 40 0.70 0.50 10.0 2.50 7.50
UBF RX90017 Fig. 1, Ø0.51, Sn/CuFe 0.17 0.34 90 40 0.48 0.85 3.0 2.00 8.00
UBF RX90020 Fig. 1, Ø0.51, Sn/CuFe 0.20 0.40 90 40 0.41 1.00 2.2 1.83 4.40
UBF RX90025 Fig. 1, Ø0.51, Sn/CuFe 0.25 0.50 90 40 0.45 1.25 2.5 1.25 3.00
UBF RX90030 Fig. 1, Ø0.51, Sn/CuFe 0.30 0.60 90 40 0.49 1.50 3.0 0.88 2.10
UBF RX90035 Fig. 1, Ø0.51, Sn/CuFe 0.35 0.75 90 40 1.30 1.30 10.0 0.70 2.50
UBF RX90040 Fig. 1, Ø0.51, Sn/CuFe 0.40 0.80 90 40 0.56 2.00 3.8 0.55 1.29
UBF RX90050 Fig. 1, Ø0.51, Sn/CuFe 0.50 1.00 90 40 0.77 2.50 4.0 0.50 1.17
UBF RX90055 Fig. 1, Ø0.51, Sn/CuFe 0.55 1.20 90 40 1.50 2.50 10.0 0.40 1.17
UBF RX90065 Fig. 1, Ø0.51, Sn/CuFe 0.65 1.30 90 40 0.88 3.25 5.3 0.31 0.72
UBF RX90075 Fig. 1, Ø0.51, Sn/CuFe 0.75 1.50 90 40 0.92 3.75 6.3 0.25 0.60
UBF RX90090 Fig. 1, Ø0.51, Sn/CuFe 0.90 1.80 90 40 0.99 4.50 7.2 0.20 0.47
UBF RX90110 Fig. 2, Ø0.81, Sn/CuFe 1.10 2.20 90 40 1.50 5.50 8.2 0.15 0.38
UBF RX90135 Fig. 2, Ø0.81, Sn/CuFe 1.35 2.70 90 40 1.70 6.75 9.6 0.12 0.30
UBF RX90160 Fig. 2, Ø0.81, Sn/CuFe 1.60 3.20 90 40 1.90 8.00 11.4 0.09 0.22
UBF RX90185 Fig. 2, Ø0.81, Sn/CuFe 1.85 3.70 90 40 2.10 9.25 12.6 0.08 0.19
UBF RX90250 Fig. 2, Ø0.81, Sn/CuFe 2.50 5.00 90 40 2.50 12.50 15.6 0.05 0.13
UBF RX90300 Fig. 2, Ø0.81, Sn/CuFe 3.00 6.00 90 40 2.80 15.00 19.8 0.04 0.10
UBF RX90375 Fig. 2, Ø0.81, Sn/CuFe 3.75 7.50 90 40 3.20 18.75 24.0 0.03 0.08


Comment

Ihold Hold current is the maximum current that UB Fuse can pass through without interruption at 20°C unless otherwise specified.
Itrip Trip current is the minimum current that will switch the device from low resistance state to high resistance state at 20°C unless specified.
Vmax The maximum voltage device can withstand without damage at rated current.
Imax The maximum current device can withstand without damage at rated voltage.
Pd The power dissipated from device when in the tripped state at 20°C unless otherwise specified.
R min The minimum resistance of device as received from the factory at 20°C unless otherwise specified.

R max The maximum resistance of device as received from the factory at 20°C unless otherwise specified.
R1max The maximum resistance of device when measured one hour post trip at 20°C unless otherwise specified.
Max.
Time-to-trip
The maximum time for device to trip at specified current ratings at 20°C unless otherwise specified.


◆ Environmental Characteristics

Test Test Conditions Resistance Change
Passive Aging +85°C, 1000 hours  ±5% typical resistance change
Humidity Aging +85°C, 85% R.H., 7 days  ±5% typical resistance change
Thermal Shock +85°C to -40°C, 10 times
MIL-STD-202, Method 107G
 ±5% typical resistance change
Vibration MIL-STD-883C, Condition A No change
Solvent resistance MIL-STD-202, Method 215 No change


Dimensions

  A B C D E
Part No Max. Max. Max. Min. Max. Max.
UBF RX90005 7.4 12.7 4.3 5.8 7.6 3.0
UBF RX90010 7.4 12.7 4.3 5.8 7.6 3.0
UBF RX90015 7.4 12.7 4.3 5.8 7.6 3.0
UBF RX90017 7.4 12.7 4.3 5.8 7.6 3.0
UBF RX90020 7.4 12.7 4.3 5.8 7.6 3.0
UBF RX90025 7.4 12.7 4.3 5.8 7.6 3.0
UBF RX90030 7.4 13.0 4.3 5.8 7.6 3.0
UBF RX90035 7.4 12.7 4.3 5.8 7.6 3.0
UBF RX90040 7.6 13.5 4.3 5.8 7.6 3.0
UBF RX90050 7.9 13.7 4.3 5.8 7.6 3.0
UBF RX90055 9.7 14.0 4.3 5.8 7.6 3.0
UBF RX90065 9.7 14.5 4.3 5.8 7.6 3.0
UBF RX90075 10.4 15.2 4.3 5.8 7.6 3.0
UBF RX90090 11.7 15.8 4.3 5.8 7.6 3.0
UBF RX90110 13.0 18.0 4.3 5.8 7.6 3.0
UBF RX90135 14.5 19.6 4.3 5.8 7.6 3.0
UBF RX90160 16.3 21.3 4.3 5.8 7.6 3.0
UBF RX90185 17.8 22.9 4.3 5.8 7.6 3.0
UBF RX90250 21.3 26.4 9.4 10.9 7.6 3.0
UBF RX90300 24.9 30.0 9.4 10.9 7.6 3.0
UBF RX90375 28.5 33.5 9.4 10.9 7.6 3.0



●NOTE:

All drawings are not in scale and layout may vary.
All parts dimension is in millimeter unless otherwise specified.
Radial-leaded parts are not designed for reflow soldering.


●Lead Materials:

UBFRX90010 – 040, Tin plated Copper Steel, Ø 0.51mm / 0.205mm2  / 24 AWG
UBFRX90050 – 090, Tin plated Copper, Ø 0.51mm / 0.205mm2  / 24 AWG
UBFRX90110 – 375, Tin plated Copper, Ø 0.81mm / 0.52mm2  / 20 AWG

●Insulation Materials:     Cured, flame-retardant epoxy polymer that meets UL94V-0

●Agency Approval:

UL File Number E 119550
c-UL File Number E 119550
TUV File Number Pending






◆Typical Thermal Derating Chart - Ihold (A)

Part No -40 -20 0 20 40 60 85
UBF RX90010 0.16 0.14 0.11 0.10 0.08 0.067 0.04
UBF RX90015 0.16 0.14 0.11 0.10 0.08 0.067 0.04
UBF RX90017 0.26 0.23 0.21 0.17 0.14 0.11 0.07
UBF RX90020 0.31 0.27 0.24 0.20 0.16 0.13 0.08
UBF RX90025 0.39 0.34 0.30 0.25 0.20 0.16 0.10
UBF RX90030 0.47 0.41 0.36 0.30 0.24 0.20 0.12
UBF RX90035 0.62 0.54 0.48 0.40 0.32 0.25 0.16
UBF RX90040 0.62 0.54 0.48 0.40 0.32 0.25 0.16
UBF RX90050 0.78 0.68 0.60 0.50 0.41 0.32 0.20
UBF RX90055 0.78 0.68 0.60 0.50 0.41 0.32 0.20
UBF RX90065 1.01 0.88 0.77 0.65 0.53 0.41 0.26
UBF RX90075 1.16 1.02 0.89 0.75 0.61 0.47 0.30
UBF RX90090 1.40 1.22 1.07 0.90 0.73 0.57 0.36
UBF RX90110 1.71 1.50 1.31 1.10 0.89 0.69 0.44
UBF RX90135 2.09 1.84 1.61 1.35 1.09 0.85 0.54
UBF RX90160 2.48 2.18 1.90 1.60 1.30 1.01 0.64
UBF RX90185 2.87 2.52 2.20 1.85 1.50 1.17 0.74
UBF RX90250 3.88 3.40 2.98 2.50 2.03 1.58 1.00
UBF RX90300 4.65 4.08 3.57 3.00 2.43 1.89 1.20
UBF RX90375 5.81 5.10 4.46 3.75 3.04 2.36 1.50




Typical Time To Trip Curve at 20°C









◆Packaging Information

Part No -1 Loose Pack Quantity -2 Tape & Reel Quantity -3 Ammo Pack Quantity
UBF RX90010 500 3000 2000
UBF RX90015 500 3000 2000
UBF RX90017 500 3000 2000
UBF RX90020 500 3000 2000
UBF RX90025 500 3000 2000
UBF RX90030 500 3000 2000
UBF RX90035 500 3000 2000
UBF RX90040 500 3000 2000
UBF RX90050 500 3000 2000
UBF RX90055 500 3000 2000
UBF RX90065 500 3000 2000
UBF RX90075 500 3000 2000
UBF RX90090 500 3000 2000
UBF RX90110 500 1500 1000
UBF RX90135 500 1500 1000
UBF RX90160 500 1500 1000
UBF RX90185 500 1500 1000
UBF RX90250 250 1000 1000
UBF RX90300 250 1000 1000
UBF RX90375 250 Not available Not available



◆ Tape and Reel Specifications per EIA468-B

Description EIA
Mark
Dimension Tolerance
Carrier tape width W 18 -0.5/+1.0
Hold-down tape width W4 11 Minimum
Top distance between tape edges W6 3 Maximum
Sprocket hole position W5 9 -0.5/+0.75
Sprocket hole diameter D0 4 ±0.2
Abscissa to plane (kinked lead) UBF RX90010 - 090 H0 16.0 ±0.5
Abscissa to plane (straight lead) UBF RX90110 - 300 H 18.5 ±2.5
Abscissa to top UBF RX90010 - 090 H1 32.2 Maximum
Abscissa to top BFRX90110 - 300 H1 47.5 Maximum
Overall width w/lead protrusion UBF RX90010 - 090 C1 43.2 Maximum
Overall width w/lead protrusion UBF RX90110 - 300 C1 58 Maximum
Overall width w/o lead protrusion UBF RX90010 - 090 C2 42.5 Maximum
Overall width w/o lead protrusion UBF RX90110 - 300 C2 57 Maximum
Lead protrusion L1 1.0 Maximum
Protrusion of cut-out L 11.0 Maximum
Protrusion beyond hold-down tape I2 Not specified --
Sprocket hole pitch P0 12.7 ±0.3
Device pitch UBF RX90010 - 090 -- 12.7 ±0.3
Device pitch UBF RX90110 - 300 -- 25.4 ±0.6
Pitch tolerance -- 20 consecutive ±1
Tape thickness t 0.9 Maximum
Overall tape and lead thickness UBF RX90010 – 090 t1 1.5 Maximum
Overall tape and lead thickness UBF RX90110 - 300 t1 2.3 Maximum
Splice sprocket hole alignment -- 0 ±0.3
Body lateral deviation △h 0 ±1.0
Body tape plane deviation △p 0 ±1.3
Ordinate to adjacent component lead UBF RX90010 - 090 P1 3.81 ±0.7
Ordinate to adjacent component lead UBF RX90110 - 300 P1 7.62 ±0.7
Lead spacing UBF RX90010 - 185 F 5.08 +0.75/-0.5
Lead spacing UBF RX90250 - 300 F 10.2 +0.75/-0.5
Reel width UBF RX90010 - 090 w2 56.0 Maximum
Reel width UBF RX90110 - 300 w2 63.5 Maximum
Reel diameter a 370.0 Maximum
Space between flanges less device w1 4.75 ±3.25
Arbor hole diameter c 26.0 ±12.0
Core diameter n 91.0 Maximum
Box -- 64/372/362 Maximum
Consecutive missing places -- None --
Empty places per reel -- 0.1% Maximum
