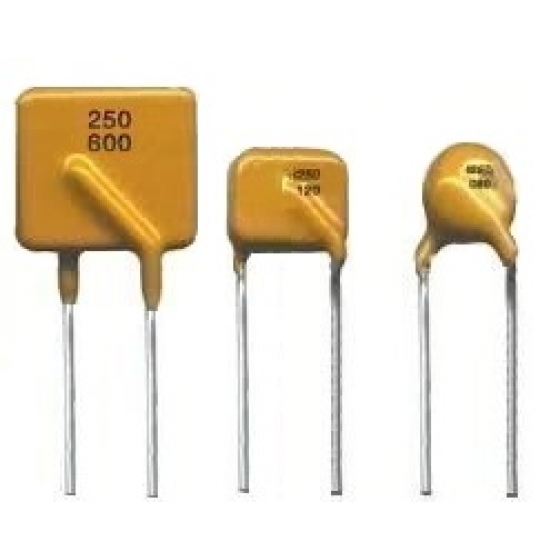

◆ UBF RH250/600　(250V/600V)

◆Electrical Characteristics


Part No		Figure / Lead Option	lhold (A)	Itrip (A)	Vmax (V)	Imax (A)	Pd typ (W)	Max. (A)	Time-to-trip  (s)	R min (Ω)	R1 Max  (Ω)
UBF	RH250080	Fig. 1, Ø0.51, Sn/CuFe	0.08	0.16	100	3.0	1.0	0.35	4.0	14.5	33.0
UBF	RH250110	Fig. 1, Ø0.51, Sn/CuFe	0.11	0.22	100	3.0	1.0	1.00	2.0	5.0	16.0
UBF	RH250120	Fig. 1, Ø0.51, Sn/CuFe	0.12	0.24	100	3.0	1.0	1.00	2.0	4.0	16.0
UBF	RH250145	Fig. 1, Ø0.51, Sn/CuFe	0.15	0.29	100	3.0	1.0	1.00	2.5	3.0	12.0
UBF	RH250180	Fig. 1, Ø0.51, Sn/CuFe	0.18	0.65	100	10.0	1.5	3.00	2.0	0.8	4.0
UBF	RH250150	Fig. 1, Ø0.51, Sn/CuFe	0.15	0.30	250	3.0	1.0	1.00	3.0	0.6	17.0
UBF	RH250160	Fig. 2, Ø0.81, Sn/CuFe	0.16	0.32	250	3.0	1.0	1.00	7.0	0.4	18.0



◆Comment


Ihold	Hold current is the maximum current that UB Fuse can pass through without interruption at 20°C unless otherwise specified.
Itrip	Trip current is the minimum current that will switch the device from low resistance state to high resistance state at 20°C unless specified.
Vmax	The maximum voltage device can withstand without damage at rated current.
Imax	The maximum current device can withstand without damage at rated voltage.
Pd	The power dissipated from device when in the tripped state at 20°C unless otherwise specified.
R min	The minimum resistance of device as received from the factory at 20°C unless otherwise specified.
R max	The maximum resistance of device as received from the factory at 20°C unless otherwise specified.
R1max	The maximum resistance of device when measured one hour post trip at 20°C unless otherwise specified.
Max. Time-to-trip	The maximum time for device to trip at specified current ratings at 20°C unless otherwise specified.



◆ Environmental Characteristics


Test	Test Conditions	Resistance Change
Passive Aging	+85°C, 1000 hours	±5% typical resistance change
Humidity Aging	+85°C, 85% R.H., 7 days	±5% typical resistance change
Thermal Shock	+85°C to -40°C, 10 times MIL-STD-202, Method 107G	±5% typical resistance change
Vibration	MIL-STD-883C, Condition A	No change
Solvent resistance	MIL-STD-202, Method 215	No change




◆Dimensions


	A	B	C	D	E	F
Part No	Figure	Max.	Max.	Typical	Min.	Max.
UBF RH250080	1	5.8	9.6	5.0	4.7	4.6
UBF RH250110	1	6.8	9.9	5.0	4.7	4.6
UBF RH250120	2	6.5	11.0	5.0	4.7	4.6
UBF RH250145	2	6.5	11.0	5.0	4.7	4.6
UBF RH250180	1	9.0	12.0	5.0	4.7	3.8
UBF RH250150	2	9.0	12.5	5.0	4.7	4.6
UBF RH250160	2	16.0	12.6	5.0	4.7	6.0



●NOTE:

All drawings are not in scale and layout may vary.
All parts dimension is in millimeter unless otherwise specified.
Radial-leaded parts are not designed for reflow soldering.


●Lead Materials:

UBF RH250080 – 180, Tin plated Copper, Ø0.81mm / 0.52mm2  / 20 AWG
UBF RH600150 – 160, Tin plated Copper, Ø0.81mm / 0.52mm2  / 20 AWG

●Insulation Materials:     Cured, flame-retardant epoxy polymer that meets UL94V-0

●Agency Approval:


UL File Number	E 119550
c-UL File Number	E 119550
TUV File Number	Pending






◆Typical Thermal Derating Chart - Ihold (A)


Part No	-40	-20	0	20	40	60	85
UBF RH250080	0.13	0.11	0.10	0.10	0.07	0.05	0.03
UBF RH250110	0.17	0.15	0.13	0.13	0.09	0.07	0.03
UBF RH250120	0.19	0.17	0.14	0.14	0.10	0.08	0.05
UBF RH250145	0.24	0.21	0.18	0.18	0.12	0.10	0.06
UBF RH250180	0.28	0.25	0.21	0.21	0.15	0.12	0.08
UBF RH250150	0.24	0.21	0.18	0.18	0.12	0.10	0.06
UBF RH250160	0.25	0.22	0.19	0.19	0.13	0.10	0.07






◆Typical Time To Trip Curve at 20°C







 ◆Packaging Information


Part No	-1 Loose Pack Quantity	-2 Tape & Reel Quantity	-3 Ammo Pack Quantity
UBF RH250080	500	3000	2000
UBF RH250110	500	3000	2000
UBF RH250120	500	3000	2000
UBF RH250145	500	3000	2000
UBF RH250180	500	2500	2000
UBF RH250150	500	2500	2000
UBF RH250160	500	2000	2000
