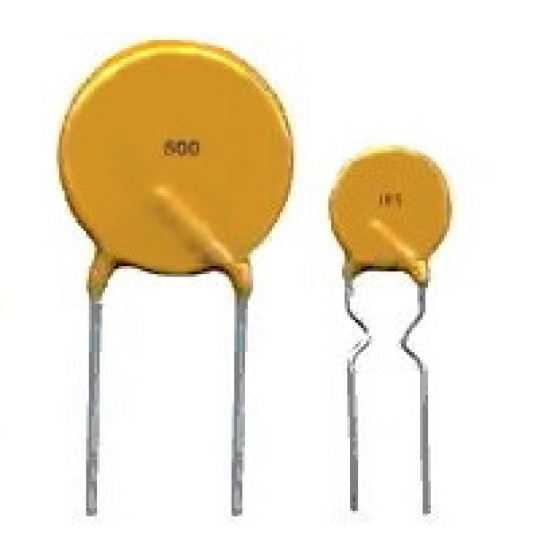

UBF RA120 Series (120V)
Details
UBF RA120 (120V)

Electrical Characteristics

Part No
Figure / Lead Option
lhold (A) Itrip
(A)
Vmax
(V)
Imax
(A)
Pd typ
(W)
Max.
(A)
Time-to-trip
 (s)
R min
(Ω)
R1 Max
 (Ω)
UBF RA120010 Fig. 1, Ø0.51, Sn/CuFe 0.10 0.20 120 2.0 0.84 0.50 10.0 3.00 7.50
UBF RA120017 Fig. 1, Ø0.51, Sn/CuFe 0.17 0.34 120 2.0 0.84 0.80 10.0 2.00 7.00
UBF RA120020 Fig. 1, Ø0.51, Sn/CuFe 0.20 0.40 120 2.0 1.08 1.00 9.0 1.83 4.40
UBF RA120025 Fig. 1, Ø0.51, Sn/CuFe 0.25 0.50 120 3.0 1.08 1.25 7.5 1.25 3.00
UBF RA120030 Fig. 1, Ø0.51, Sn/CuFe 0.30 0.60 120 3.0 1.44 1.50 8.5 0.88 2.10
UBF RA120040 Fig. 1, Ø0.51, Sn/CuFe 0.40 0.80 120 3.0 1.44 2.00 6.5 0.55 1.29
UBF RA120050 Fig. 2, Ø0.81, Sn/CuFe 0.50 1.00 120 3.0 1.56 2.25 6.0 0.50 1.17
UBF RA120065 Fig. 2, Ø0.81, Sn/CuFe 0.65 1.30 120 5.0 1.68 3.25 5.7 0.31 0.72
UBF RA120070 Fig. 2, Ø0.81, Sn/CuFe 0.70 1.50 120 5.0 1.80 3.75 6.3 0.25 0.60
UBF RA120075 Fig. 2, Ø0.81, Sn/CuFe 0.75 1.50 120 7.5 2.64 3.75 15.0 0.25 0.69
UBF RA120090 Fig. 2, Ø0.81, Sn/CuFe 0.90 1.80 120 5.0 1.80 4.50 7.2 0.20 0.47
UBF RA120100 Fig. 2, Ø0.81, Sn/CuFe 1.00 2.00 120 10.0 2.64 5.00 15.0 0.18 0.47
UBF RA120110 Fig. 2, Ø0.81, Sn/CuFe 1.10 2.20 120 8.0 2.28 5.50 8.2 0.15 0.38
UBF RA120125 Fig. 2, Ø0.81, Sn/CuFe 1.25 2.50 120 12.5 2.88 6.25 20.0 0.11 0.33
UBF RA120130 Fig. 2, Ø0.81, Sn/CuFe 1.35 2.70 120 10.0 2.24 6.75 9.6 0.12 0.30
UBF RA120135 Fig. 2, Ø0.81, Sn/CuFe 1.35 2.70 120 13.5 3.12 6.75 20.0 0.11 0.30
UBF RA120160 Fig. 2, Ø0.81, Sn/CuFe 1.60 3.20 120 12.0 3.12 8.00 11.4 0.09 0.22
UBF RA120180 Fig. 2, Ø0.81, Sn/CuFe 1.80 3.70 120 12.0 3.36 9.25 12.6 0.08 0.19
UBF RA120200 Fig. 2, Ø0.81, Sn/CuFe 2.00 4.20 120 20.0 4.32 10.00 36.0 0.08 0.21
UBF RA120250 Fig. 2, Ø0.81, Sn/CuFe 2.50 5.00 120 15.0 4.44 10.25 15.6 0.05 0.13
UBF RA120300 Fig. 2, Ø0.81, Sn/CuFe 3.00 6.00 120 17.0 4.56 15.00 19.8 0.04 0.10
UBF RA120375 Fig. 2, Ø0.81, Sn/CuFe 3.75 7.50 120 20.0 4.80 18.75 24.0 0.03 0.08






Comment

Ihold Hold current is the maximum current that UB Fuse can pass through without interruption at 20°C unless otherwise specified.
Itrip Trip current is the minimum current that will switch the device from low resistance state to high resistance state at 20°C unless specified.
Vmax The maximum voltage device can withstand without damage at rated current.
Imax The maximum current device can withstand without damage at rated voltage.
Pd The power dissipated from device when in the tripped state at 20°C unless otherwise specified.
R min The minimum resistance of device as received from the factory at 20°C unless otherwise specified.

R max The maximum resistance of device as received from the factory at 20°C unless otherwise specified.
R1max The maximum resistance of device when measured one hour post trip at 20°C unless otherwise specified.
Max.
Time-to-trip
The maximum time for device to trip at specified current ratings at 20°C unless otherwise specified.


◆ Environmental Characteristics

Test Test Conditions Resistance Change
Passive Aging +85°C, 1000 hours  ±5% typical resistance change
Humidity Aging +85°C, 85% R.H., 7 days  ±5% typical resistance change
Thermal Shock +85°C to -40°C, 10 times
MIL-STD-202, Method 107G
 ±5% typical resistance change
Vibration MIL-STD-883C, Condition A No change
Solvent resistance MIL-STD-202, Method 215 No change




Dimensions

  A B C D E F G
Part No Figure Max. Max. Typical Min. Max. Typical
UBF RA120010 1 7.9 13.0 5.1 7.6 3.8 2.2
UBF RA120017 1 7.9 13.0 5.1 7.6 3.8 2.2
UBF RA120020 2 7.9 13.0 5.1 7.6 3.8 2.2
UBF RA120025 2 7.9 13.0 5.1 7.6 3.8 2.2
UBF RA120030 2 7.9 13.0 5.1 7.6 3.8 2.2
UBF RA120040 2 8.2 14.2 5.1 7.6 3.8 2.2
UBF RA120050 2 9.2 14.9 5.1 7.6 3.8 2.2
UBF RA120065 2 9.7 14.9 5.1 7.6 3.8 2.2
UBF RA120070 2 10.6 15.5 5.1 7.6 3.8 2.2
UBF RA120075 4 10.9 17.0 5.1 7.6 4.1 2.2
UBF RA120090 2 11.9 15.9 5.1 7.6 3.8 2.2
UBF RA120100 4 11.5 20.1 5.1 7.6 4.1 2.2
UBF RA120110 3 13.3 18.3 5.1 7.6 4.1 2.2
UBF RA120125 4 14.0 21.7 5.1 7.6 4.1 2.2
UBF RA120130 3 15.5 20.6 5.1 7.6 4.1 2.2
UBF RA120135 4 16.3 21.7 5.1 7.6 4.1 2.2
UBF RA120160 3 17.5 22.5 5.1 7.6 4.1 2.2
UBF RA120180 3 19.9 24.9 5.1 7.6 4.1 2.2
UBF RA120200 4 23.5 27.9 10.2 7.6 4.1 2.2
UBF RA120250 3 22.5 27.5 10.2 7.6 4.1 2.2
UBF RA120300 3 25.5 30.0 10.2 7.6 4.1 2.2
UBF RA120375 3 29.5 34.0 10.2 7.6 4.1 2.2


●NOTE:

All drawings are not in scale and layout may vary.
All parts dimension is in millimeter unless otherwise specified.
Radial-leaded parts are not designed for reflow soldering.


●Lead Materials:

UBFRX30090 – 250, Tin plated Copper Steel, Ø0.51mm / 0.205mm2 / 24 AWG
UBFRX30300 – 900, Tin plated Copper, Ø0.81mm / 0.52mm2 / 20 AWG

●Insulation Materials:     Cured, flame-retardant epoxy polymer that meets UL94V-0

●Agency Approval:

UL File Number E 119550
c-UL File Number E 119550
TUV File Number Pending





◆Typical Thermal Derating Chart - Ihold (A)

Part No -40 -20 0 20 40 60 85
UBF RA120010 0.16 0.14 0.12 0.10 0.08 0.06 0.04
UBF RA120017 0.27 0.23 0.20 0.27 0.14 0.10 0.06
UBF RA120020 0.32 0.28 0.24 0.20 0.16 0.12 0.08
UBF RA120025 0.40 0.35 0.30 0.25 0.20 0.15 0.10
UBF RA120030 0.47 0.41 0.36 0.30 0.24 0.18 0.11
UBF RA120040 0.63 0.55 0.48 0.40 0.32 0.24 0.15
UBF RA120050 0.79 0.69 0.60 0.50 0.40 0.30 0.19
UBF RA120065 1.03 0.90 0.77 0.65 0.52 0.39 0.25
UBF RA120070 1.19 1.04 0.89 0.75 0.68 0.53 0.29
UBF RA120075 1.19 1.24 0.89 0.75 0.68 0.53 0.29
UBF RA120090 1.42 1.24 1.07 0.90 0.81 0.63 0.34
UBF RA120100 1.58 1.38 1.19 1.00 0.90 0.70 0.38
UBF RA120110 1.74 1.52 1.13 1.10 0.99 0.77 0.42
UBF RA120125 1.98 1.73 1.49 1.25 1.13 0.88 0.48
UBF RA120130 2.13 1.86 1.61 1.44 1.22 0.95 0.51
UBF RA120135 2.13 1.86 1.61 1.67 1.22 0.95 0.51
UBF RA120160 2.53 2.21 1.90 1.60 1.44 1.12 0.06
UBF RA120180 2.92 2.55 2.20 1.85 1.67 1.30 0.70
UBF RA120200 3.16 2.76 2.38 2.00 1.80 1.40 0.76
UBF RA120250 3.95 3.45 2.98 2.50 2.25 1.75 0.95
UBF RA120300 4.74 4.14 3.57 3.00 2.70 2.10 1.14
UBF RA120375 5.93 11.70 4.46 3.75 3.38 2.63 1.43





◆Typical Time To Trip Curve at 20°C
