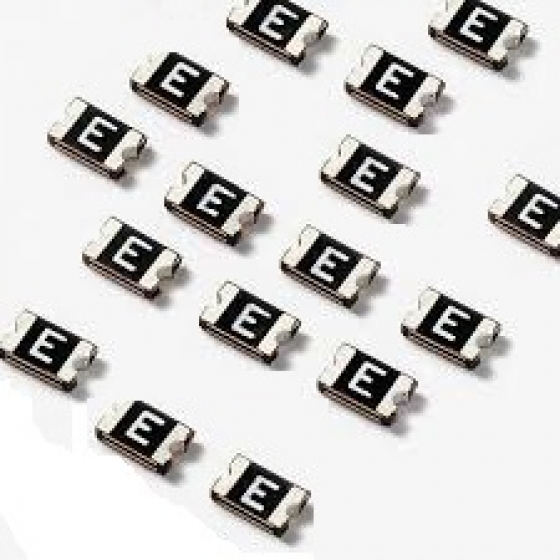

UBF dSMD Series (0603)
Details
UBF dSMD (0603)

Electrical Characteristics

Part No lhold (A) Itrip
(A)
Vmax
(V)
Imax
(A)
Pd typ
(W)
Max.
(A)
Time-to-trip
 (s)
R min
(Ω)
R1 Max
 (Ω)
UBF dSMD005 0.05 0.15 40 15 0.5 0.50 0.10 3.80 30.00
UBF dSMD010 0.10 0.25 40 15 0.5 0.70 0.10 0.90 8.00
UBF dSMD012 0.12 0.30 40 9 0.5 0.80 0.10 1.10 5.80
UBF dSMD016 0.16 0.40 40 9 0.5 1.00 0.10 1.00 4.20
UBF dSMD020 0.20 0.45 40 9 0.6 2.00 0.10 0.55 3.50


Comment

Ihold Hold current is the maximum current that UB Fuse can pass through without interruption at 20°C unless otherwise specified.
Itrip Trip current is the minimum current that will switch the device from low resistance state to high resistance state at 20°C unless specified.
Vmax The maximum voltage device can withstand without damage at rated current.
Imax The maximum current device can withstand without damage at rated voltage.
Pd The power dissipated from device when in the tripped state at 20°C unless otherwise specified.
R min The minimum resistance of device as received from the factory at 20°C unless otherwise specified.

R max The maximum resistance of device as received from the factory at 20°C unless otherwise specified.
R1max The maximum resistance of device when measured one hour post trip at 20°C unless otherwise specified.
Max.
Time-to-trip
The maximum time for device to trip at specified current ratings at 20°C unless otherwise specified.


Dimensions

  A B C D E
Part No
UBF dSMD
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
1.40 1.80 0.45 1.00 0.35 0.75 0.10 0.50 0.08 0.40


●NOTE:

All drawings are not in scale and layout may vary.
All parts dimension is in millimeter unless otherwise specified.
Terminal material is Tin (Sn) plated Copper (Cu).

●Packaging: 4000 pcs per reel

●Agency Approval:


UL File Number E 119550
c-UL File Number E 119550
TUV File Number Pending






◆Typical Thermal Derating Chart - Ihold (A)


Part No -40 -20 0 20 40 60 85
UBF dSMD005 0.70 0.07 0.06 0.05 0.04 0.03 0.02
UBF dSMD010 0.15 0.14 0.12 0.10 0.08 0.06 0.04
UBF dSMD012 0.18 0.16 0.14 0.12 0.10 0.07 0.04
UBF dSMD016 0.24 0.22 0.19 0.16 0.13 0.10 0.06
UBF dSMD020 0.29 0.27 0.24 0.20 0.16 0.12 0.07




◆ Environmental Characteristics

Test Test Conditions Resistance Change
Passive Aging +85°C, 1000 hours  ±10% typical resistance change
Humidity Aging +85°C, 85% R.H., 7 days  ±10% typical resistance change
Thermal Shock +85°C to -40°C, 10 times
MIL-STD-202, Method 107G
 ±10% typical resistance change
Vibration MIL-STD-883C, Condition A No change
Solvent resistance MIL-STD-202, Method 215 No change


Typical Time To Trip Curve at 23°C










◆ Recommended Reflow Profile & Pad Size



Part No R S T
UBF dSMD005 0.80 0.60 0.80
UBF dSMD010 0.80 0.60 0.80
UBF dSMD012 0.80 0.60 0.80
UBF dSMD016 0.80 0.60 0.80
UBF dSMD020 0.80 0.60 0.80








◆ Tape & Reel Packaging Specification per EIA481-1



Parameter as EIA481-1 Dimensions (mm)
W 12.00 ± 0.30
P0 4.00 ± 0.10
P1 8.00 ± 0.10
P3 2.00 ± 0.05
A0 3.50 ± 0.23
B0 5.10 ± 0.15
B1max 8.2
D0 1.50 +0.10/-0.00
F 5.50 ± 0.05
E1 1.75 ± 0.10
E2min 10.25
T max 0.6
T1max 0.1
K0 0.90 ± 0.15
