◆APPLICATIONS

UTCX-HS digital humidity and temperature sensor is the low cost version of the reflow solderable humidity sensor series.
The accuracies have been opened to a level that guarantees a very competitive price.
The capacitive humidity sensor is available up to high volumes and as every other sensor type of t.
It is fully calibrated and provides a digital output.
high-quality relative humidity sensor for demanding measurements.


◆FEATURES


Energy consumption	80uW (at 12bit, 3V, 1 measurement / s)
RH operating range	0 – 100% RH
T operating range	-40 – +125°C (-40 – +257°F)
RH response time	8 sec (tau63%)
Output	digital (2-wire interface)

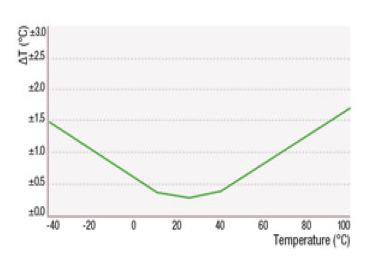

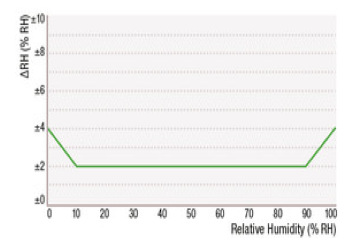

◆Maximal accuracy limits for relative humdity and temperature
