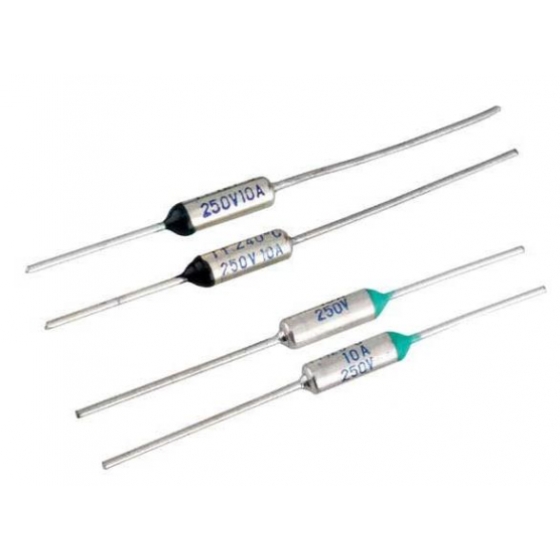

◆DESCRIPTION
Thermal links are designed to provide upper limit temperature protection of
all electric and electronic products, keeping the products functioning properly and safely and protecting lives and property as well as products from unexpected fires.
◆APPLICATION
Toaster, Baker’s Oven, Battery for Cellular Phone, Steaming Box, Party Cooker, Power Cord, Thermo-Resistor, Condenser, Bean Curd Machine,Waste Pulverizer, Transformer for Audio System, Timer Switch, UPS, SMPS, Power Strip, Sterilizer, Copy Machine, Gas Boiler, Solenoid, Adaptor, Automobile, Motor, Transformer, Electric Humidifier, Gas Range, Ice Cream Freezer, etc.
◆SPECIFICATION
| PART NO |
EK |
UL/cUL |
VDE |
CCC |
PSE |
TF |
TH |
TM:VDE UL |
| UDF 050S |
－ |
－ |
－ |
－ |
○ |
50 |
30 |
130 |
| UDF 057S |
－ |
－ |
－ |
－ |
○ |
57 |
37 |
130 |
| UDF 066S |
○ |
○ |
○ |
○ |
○ |
66 |
42 |
110 (130) |
| UDF 072S |
○ |
○ |
○ |
○ |
○ |
72 |
50 |
115 (130) |
| UDF 077S |
○ |
○ |
○ |
○ |
○ |
77 |
55 |
120 (130) |
| UDF 084S |
○ |
○ |
○ |
○ |
○ |
84 |
60 |
125 (114) |
| UDF 091S |
○ |
○ |
○ |
○ |
○ |
91 |
67 |
135 (121) |
| UDF 098S |
○ |
○ |
○ |
○ |
○ |
98 |
76 |
140 (130) |
| UDF 100S |
○ |
○ |
○ |
○ |
○ |
100 |
78 |
135 (250) |
| UDF 104S |
○ |
○ |
○ |
○ |
○ |
104 |
80 |
150 |
| UDF 110S |
○ |
○ |
○ |
○ |
○ |
110 |
88 |
130 |
| UDF 115S |
－ |
－ |
－ |
－ |
○ |
115 |
95 |
170 |
| UDF 119S |
○ |
○ |
○ |
○ |
○ |
119 |
95 |
170 |
| UDF 121S |
－ |
－ |
－ |
－ |
○ |
121 |
95 |
170 |
| UDF 128S |
○ |
○ |
○ |
○ |
○ |
128 |
106 |
155 |
| UDF 132S |
－ |
－ |
－ |
－ |
○ |
132 |
110 |
155 |
| UDF 139S |
○ |
○ |
－ |
－ |
○ |
139 |
117 |
170 |
| UDF 141S |
○ |
○ |
○ |
○ |
○ |
141 |
117 |
171 |
| UDF 144S |
○ |
○ |
○ |
○ |
○ |
144 |
120 |
250 |
| UDF 152S |
○ |
○ |
○ |
○ |
○ |
152 |
128 |
176(175) |
| UDF 167S |
○ |
○ |
－ |
－ |
○ |
167 |
142 |
210 |
| UDF 169S |
○ |
－ |
－ |
－ |
○ |
169 |
145 |
300 |
| UDF 170S |
○ |
○ |
○ |
○ |
○ |
170 |
146 |
300(190) |
| UDF 179S |
○ |
－ |
－ |
－ |
○ |
179 |
155 |
300 |
| UDF 184S |
○ |
○ |
○ |
○ |
○ |
184 |
160 |
300(214) |
| UDF 192S |
○ |
○ |
○ |
○ |
○ |
192 |
162 |
290(222) |
| UDF 216S |
○ |
－ |
○ |
○ |
○ |
216 |
－ |
241 |
| UDF 222S |
○ |
－ |
－ |
－ |
○ |
222 |
195 |
300 |
| UDF 228S |
○ |
○ |
○ |
○ |
○ |
228 |
193 |
300 |
| UDF 240S |
○ |
○ |
○ |
○ |
○ |
240 |
200 |
290(260) |
| UDF 260S |
○ |
－ |
－ |
－ |
○ |
260 |
220 |
350 |
| UDF 280S |
○ |
－ |
－ |
－ |
○ |
280 |
230 |
350 |
◆EXAMPLE

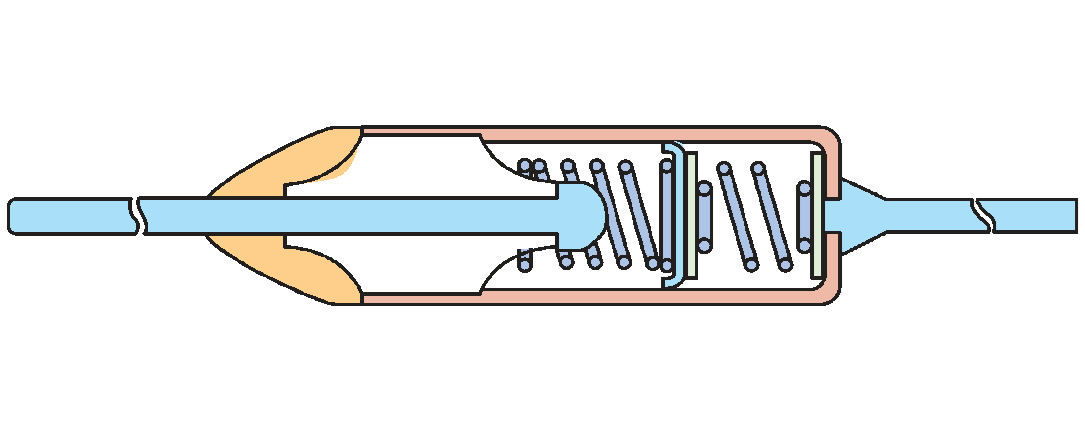

●Before fusing off
Dimensions mm

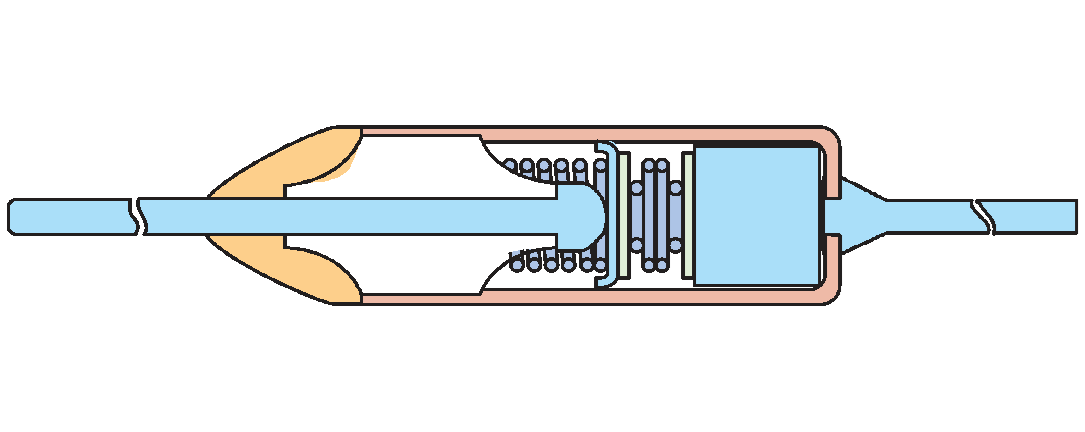

●After fusing off
Dimensions mm
| Type |
L1 |
L2 |
| S |
25.4 |
35.0 |
| S-L |
35.0 |
35.0 |
| Option |
Custom made |
Custom made |
● Approved : On applying TOLERANCE ＋0℃,－5℃
◆TEMPERATURE / CURRENT CORRELATION CURVE
●TEMPERATURE
●CURRENT
| Rated Voltage and Current Max |
| EK |
250V/15A |
| UL/cUL |
125V/15A |
| 250V/10A |
| 250V/16A |
| VDE |
250V/15A |
| PSE |
125V/15A |
| 250V/15A |
| CCC |
250V/15A |
