◆FEATURES
●High stability and best price.

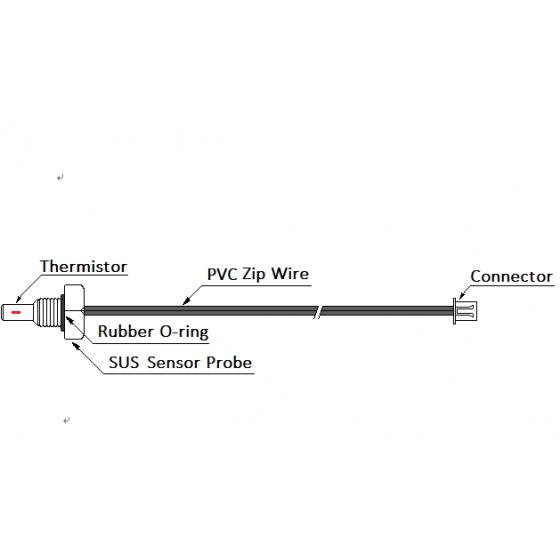

●The USC Series thermistors is a thermistor sensor in a DO 35 package.
●It is highly reliable and offer a wide operating range of -50℃to250℃.
●They can be employed for home electric appliances and high temperature applications.
●Excellent thermal cycle endurance.
●Glass sealed body for high reliability.
◆SPECIFICATIONS
●
Temperature rating : -40℃ to 250℃
●
B value : 3470K ~ 4200K
●
Determined by rated zero-power : Resistance at 25℃and 85℃
●
Resistance value at 25℃ :
3 K ohms
5 K ohms
10 K ohms
50 K ohms
100 K ohms
150 K ohms
200 K ohms
Dissipation constant 2.4mW/℃
Thermal time constant Typically 15 seconds in air.
Maximum power Rating 250 mW at 25℃
Tolerance ±1% ±3% ±5%
◆Order Map
| Series Code |
Res. value |
Res. Tolerance |
Lead Gauge |
Lengths |
B value |
| USC |
103 |
F : ± 1% |
AWG Number |
Exp :400: 400 mm |
25℃/85℃ |
| Temperature Sensor |
at 2 5℃ 10 x 103 Ω |
H : ± 3% |
|
|
|
| |
|
J : ± 5% |
|
|
|
