◆FEATURES

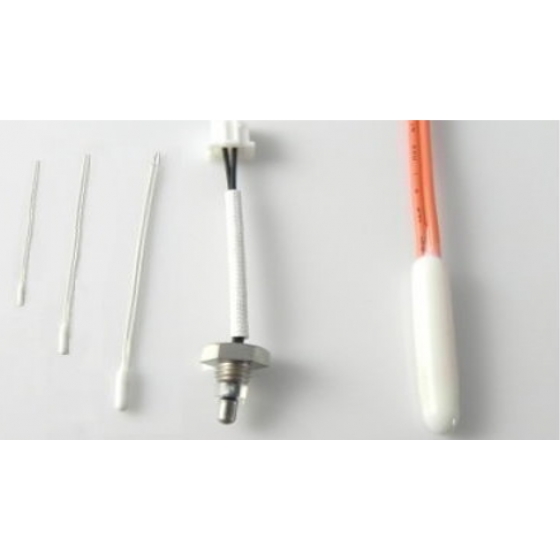

●Use medical equipment service aspect Insulated Leads temperature sensor
●The UFX Series is a high-performance thermal sensing device.
●Chip thermistor and which is different with flexible lead-wires.
●Excellent thermal cycle endurance.
●No adjust between the control circuit and the sensor.


◆SPECIFICATIONS

●Temperature rating  : -40℃ to 125℃
●B value : 3100K ~ 4200K
●Determined by rated zero-power : Resistance at 25℃and 85℃


●Rated zero-power :

+/- 0.1℃    (0℃-70℃)

●Resistance value at 25℃  :

1 K ohms
2 K ohms
5 K ohms
10 K ohms
47 K ohms
50 K ohms
100 K ohms

Dissipation constant          2mW/℃
Thermal time constant      Typically 15 seconds in air.
Maximum power Rating  10-15 mW at 25℃
Tolerance                            ±0.5%    ±1%   ±3%   ±5%



◆Order Map


Series Code	Res. value	Res. Tolerance	Lead Gauge	Lengths	B value
UFX	103	D : ±0.5 %	AWG Number	Exp:400 : 400 mm	25℃/85℃
Temperature Sensor	at 2 5℃  10 x 103 Ω	F :  ±  1%
		H : ±  3%
		J  :  ±  5%
