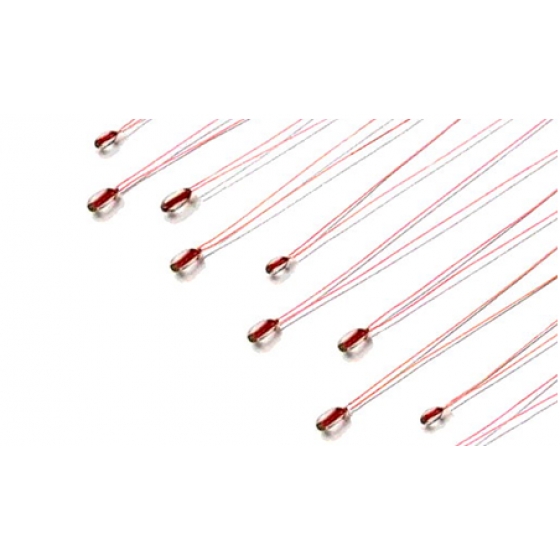

◆FEATURES

●Very long-term stability, reliability and accuracy with a little secular change as being glass-sealed.
●High voltage insulation and temperature capability due to be sealed in a glass package.
●Especially Suitable for use with automatic insertion equipment.
●Various specification by size from Φ0.55 ~ Φ2.5 and very wide operating temperature range from -40℃ to +300℃
●Contribution to cost down, by the reduction of electric parts in circuits.
●As being glass sealed, no heat processing trouble happens, though resin coated items
  may become feasible in humidity-resistance or will change resistance value due to resin crack
●Reasonable price through automated production .


◆SPECIFICATIONS

●Temperature rating  : -40℃ to 300℃
●B value : 3480K ~ 5300K
●Determined by rated zero-power : Resistance at 25℃and 85℃
 ●Tolerance                            ±1% ±3%   ±5%







Type	Item No.	Nominal Zero- Power Resistance (at25°C)	B-value (25/85°C)
UGT-S1	202	2,000 KΩ	3499 K
	502	5,000 KΩ	3480 K
	103	10,000 KΩ	3435 K
	203	20,000 KΩ	3950 K
	303	30,000 KΩ	3950 K
	503	50,000 KΩ	3950 K
	473	47,000 KΩ	3950 K
	104	100,000 KΩ	3950 K

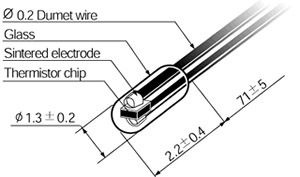

Type	Item No.	Nominal Zero- Power Resistance (at25°C)	B-value (25/85°C)
UGT-S2	102	1,000 KΩ	3305 K
	202	2,000 KΩ	3499 K
	502	5,000 KΩ	3480 K
	103	10,000 KΩ	3435 K
	203	20,000 KΩ	3950 K
	303	30,000 KΩ	3950 K
	503	50,000 KΩ	3950 K
	473	47,000 KΩ	3950 K
	104	100,000 KΩ	3950 K



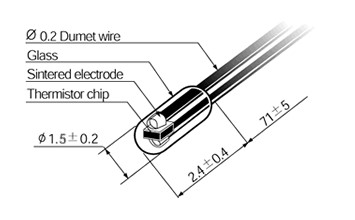

Type	Item No.	Nominal Zero- Power Resistance (at25°C)	B-value (25/85°C)
UGT-S3	202	2,000 KΩ	3499 K
	232	2,300 KΩ	3950 K
	332	3,300 KΩ	3950 K
	502	5,000 KΩ	3480 K
	103	10,000 KΩ	3435 K
	103	10,000 KΩ	3950 K
	203	20,000 KΩ	3950 K
	303	30,000 KΩ	3950 K
	503	50,000 KΩ	3950 K
	473	47,000 KΩ	3950 K
	104	100,000 KΩ	3950 K
	104	100,000 KΩ	4066 K
	204	200,000 KΩ	4200 K
	304	300,000 KΩ	4310 K
	504	500,000 KΩ	4260 K



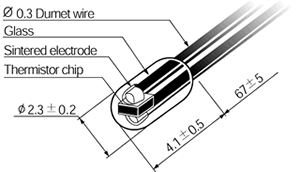

Type	Item No.	Nominal Zero- Power Resistance (at25°C)	B-value (25/85°C)
UGT-S4	102	1,000 KΩ	3305 K
	202	2,000 KΩ	3499 K
	502	5,000 KΩ	3480 K
	103	10,000 KΩ	3435 K
	203	20,000 KΩ	3950 K
	303	30,000 KΩ	3950 K
	503	50,000 KΩ	3950 K
	473	47,000 KΩ	3950 K
	104	100,000 KΩ	3950 K

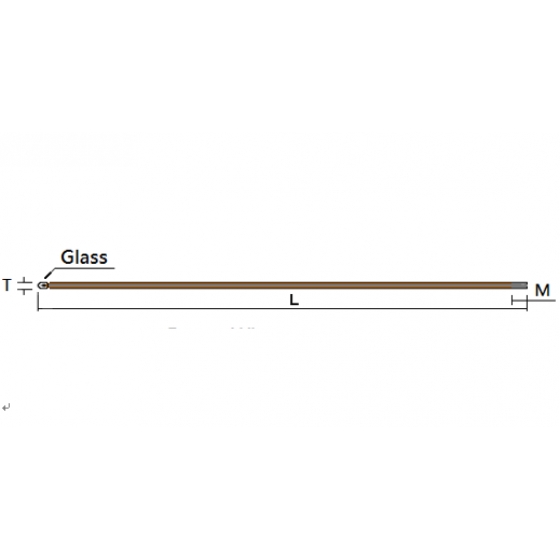

◆Order Map



Series Code	Diameter	Res. value	Res. Tolerance	Lead Gauge	B value
UGT		103	F :  ±  1%	025 :  25 mm	25℃/85℃
		at 2 5℃  10 x 103 Ω	H : ±  3%	055 :  55 mm
			J  :  ±  5%	072 :  72 mm
				150 : 150 mm
