SMD Series
詳細請查看附件
Details

Introduction


Multilayer chip varistors(MLV) have good nonlinear voltage-current characteristics and high surge capability. They also have fast- response characteristics in several hundred pico second level. They are very suitable
and widely used for the problems of transient over-voltage protection caused by ESD(Electrostatic Discharge).

Features

• The fastest response time about 300~700ps
• Repetitive pulse characteristics
• High discharge transient current and energy handling capability
• Thermal stability through 125Ç
• EMI/RFI Attenuation characteristics



Applications

• Latch up protection for CMOS
• MOSFET protection for ESD/EOS
• High speed data I/O Port protection
• Keypad, Keyboard protection
• CDMA, GSM, Cordless phone		 • Notebook, Workstations
• Digital camcorder
• CD-ROM, DVD-ROM, MD, MP3-PLAYER
• Automotive Application
• Onboard computer, electric motor control

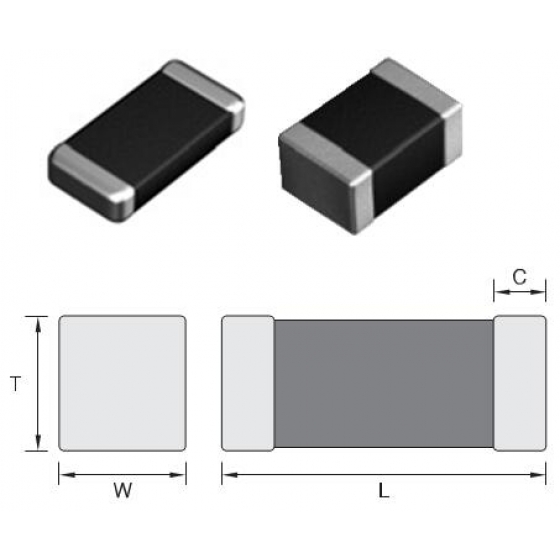

Shape & Dimensions

Size Code

L

W

T Max.

C Min.

1005(0402)

1.0±0.05

0.5±0.05

0.55

0.1

1608(0603)

1.6±0.15

0.8±0.15

0.9

0.2

2012(0805)

2.0±0.20

1.25±0.20

1.3

0.2

3216(1206)

3.2±0.25

1.60±0.20

1.4

0.2


How to Order(Product Identification)
1. Series 2. Size Code 3. Energy Rating Code

Code

Product Name

VSN

Chip Varistor Normal Type

VSL

Low Capacitance Type

VSH

High Surge Type

VHS

High Speed Type
The first two digits : Length(mm) The last two digits : Width(mm)

Code

Energy rating

Code

Energy rating

A

0.1J

H

1.2J

B

0.2J

J

1.5J

C

0.3J

K

2.0J

D

0.4J

P

3.0J

E

0.6J

U

0.01J

F

0.7J

V

0.02J

G

0.9J

X

0.05J
5. Working Voltage Code 6. Termination Code 7. Packaging Code

Code

Working  Voltage

03

3.5Vdc

05

5.6Vdc

09

9.0Vdc

□□

Two digits are real value
N : Plating(Ni/Sn) Type

Code

Packaging

B

Bulk Pack

R

Tape&Reel Pack

E

Embossed Tape Pack

ESD Protection of RF Amplifier, FET, High Speed Date Line



Part No.

Working

Voltage

Varistor

Voltage

Clamping

Voltage

Max. Peak

Current

Max

Energy

Typical

Capacitance pF@1MHz

Vw(DC)

Vb(@1mA)

Vc

Ip(A)

Et(J)

VSN1005X05NR

5.6

7.6~9.3

15.5

20

0.05

180

VSN1005X09NR

9

11.0~14.0

20

20

0.05

150

VSN1005X14NR

14

16.5~20.3

30

20

0.05

120

VSN1005X18NR

18

22.9~28.0

40

20

0.05

90

Peak Power VS Pulse Duration
 Insertion Loss Characteristics


Specifications(Normal  Type)

For ESD, COMS Latch Up, PET Protection


Part No.		 Working Voltage Varistor Voltage Clamping Voltage Max. Peak Current Max Energy Typical Capacitance
  Vw(DC) Vb(@1mA) Vc Ip(A) Et(J) pF@1MHz
VSN1608A05NR 5.6 7.6~9.3 16 30 0.1 800
VSN1608A09NR 9.0 11.0~14.0 20 30 0.1 500
VSN1608A12NR 12 14.8~18.3 27 40 0.1 350

VSN1608A14NR
14
16.5~20.3
30
30
0.1
250

VSN1608A18NR
18
22.9~28.0
40
30
0.1
200

VSN1608A26NR
26
31.0~38.0
58
30
0.1
70

VSN1608A30NR
30
37.0~46.0
65
30
0.1
70

VSN2012A05NR
5.6
7.6~9.3
16
40
0.1
1250

VSN2012A09NR
9
11.0~14.0
20
40
0.1
740

VSN2012A12NR
12
14.8~18.3
25
40
0.1
525

VSN2012A14NR
14
16.5~20.3
30
40
0.1
375

VSN2012A18NR
18
22.9~28.0
40
30
0.1
350

VSN2012A26NR
26
31.0~38.0
58
30
0.1
140

VSN2012A30NR
30
37.0~46.0
65
30
0.1
100

VSN3216A05NR
5.6
7.6~9.3
16
40
0.1
850

VSN3216A09NR
9
11.0~14.0
20
40
0.1
650

VSN3216A14NR
14
16.5~20.3
30
40
0.1
500

VSN3216A18NR
18
22.9~28.0
40
30
0.1
290

VSN3216A26NR
26
31.0~38.0
58
30
0.1
270

VSN3216A30NR
30
37.0~46.0
65
30
0.1
200



Protect for very High Speed Data Transmission Line

• 3pF & 12pF Capacitance Versions Suitable for High Speed Data-Rate Line
• Very Low Leakage Currents
• ESD Rated to IEC 61000-4-2(Level 4)
• Very Suitable for USB, IEEE 1394 Data Line Protection
• Mobile Communications/Cellular Phone Etc.




Part No.

Working

Voltage



Maximu Leakage Current at Specified DC Voltage

Max Energy pF@1MHz

Typical Inductance (di/dt=0.1A/ns)

Vw(DC)

3.5V

5.5V

9V

15V

V1005HS03

< 30

0.05

0.10

0.15

0.25

3

< 1.0

V1005HS06

< 30

0.05

0.10

0.15

0.25

6

< 1.0

V1005HS12

< 18

0.10

0.15

0.25

0.50

12

< 1.0

V1608HS03

< 30

0.05

0.10

0.15

0.25

3

< 1.0

V1608HS06

< 30

0.05

0.10

0.15

0.25

6

< 1.0

V1608HS12

< 18

0.10

0.15

0.25

0.50

12

< 1.0



Specifications(Low Capacitance Type )


Protect  for  very  High Speed Data Transmission Line

•Very Low Leakage Current Type for Battery Operated Equipment
•Very Low Capacitance about <200pF Proper to High Speed Data Transmission
•Suitable for USB, IEEE1394 Data Line Protection


Part No.		 Working Voltage Varistor Voltage Clamping Voltage Max. Peak Current Max Energy Typical Capacitance
  Vw(DC) V1mA Vc Ip(A) Et(J) pF@1MHz
VSL1005X03NR 3.6 8 15.5 15 0.05 150
VSL1005X05NR 5.6 12 20 20 0.05 100
VSL1005U05NR 5.6 12 20 15 0.01 50

VSL1005X12NR
12
18
30
20
0.05
50

VSL1005V12NR
12
18
30
15
0.02
25

VSL1005V18NR
18
27
50
15
0.02
30

VSL1005U18NR
18
27
50
10
0.01
15

VSL1608A05NR
5.6
12
20
25
0.1
400

VSL1608X05NR
5.6
12
20
20
0.05
100

VSL1608V05NR
5.6
12
20
15
0.02
50

VSL1608X12NR
12
18
30
20
0.05
80

VSL1608X18NR
18
27
50
20
0.05
75

Insertion Loss Characteristics
 ESD Repetitive Characteristics




For Line Surge , Switching Surge , ESD Protection


Part No.		 Working Voltage Varistor Voltage Clamping Voltage Max. Peak Current Max Energy Typical Capacitance
  Vw(DC) Vw(AC) Vb(@1mA) Vc Ip(A) Et(J) pF@1MHz
VSH2012C05NR 5.6 4.0 7.6~9.3 15.5 120 0.3 1600
VSH2012C09NR 9 6.4 11.0~14.0 20 120 0.3 1200
VSH2012C14NR 14 10 16.5~20.3 30 120 0.3 600

VSH2012C18NR
18
12
22.9~28.0
40
100
0.3
400
VSH2012C26NR 26 18 31.0~38.0 58 100 0.3 250

VSH2012C30NR
30
21
37.0~46.0
65
100
0.3
200
VSH3216D05NR 5.6 4.0 7.6~9.3 16 150 0.4 1800

VSH3216D09NR
9
6.4
11.0~14.0
20
150
0.4
1500
VSH3216D14NR 14 10 16.5~20.3 30 150 0.4 700

VSH3216D18NR
18
12
22.9~28.0
40
150
0.4
400
VSH3216D26NR 26 18 31.0~38.0 58 120 0.4 300

VSH3216D30NR
30
21
37.0~46.0
65
120
0.4
200
