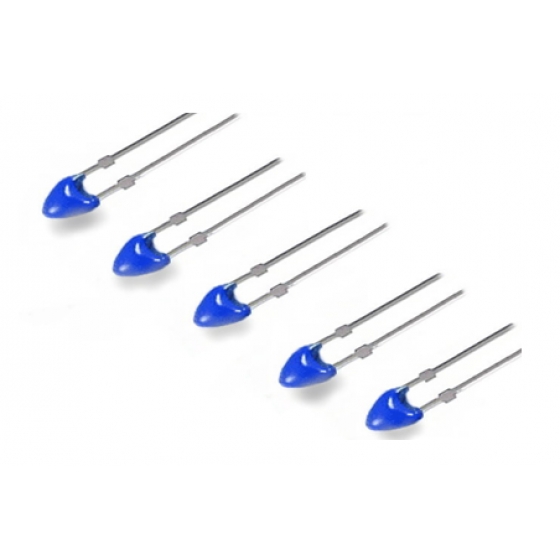

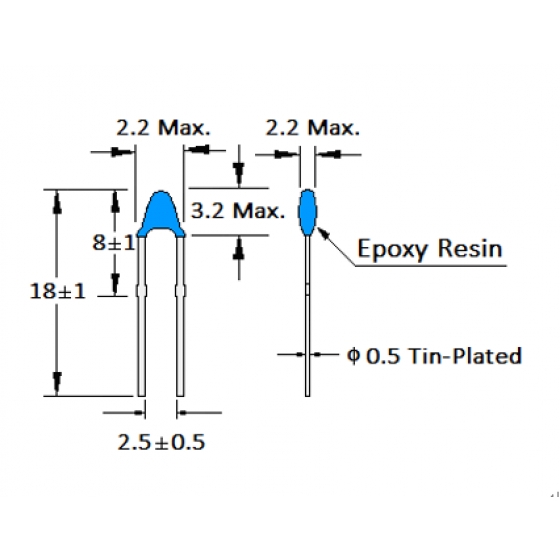

UHAT Series
Details
FEATURES

●Low cost, high stability.
●The UHAT series thermistors is a high-performance thermal sensing device.
●They insure temperature precision of ±0.3 ℃ and can be employed for very accurate temperature control
or compensation.
●Excellent thermal cycle endurance and they small B-value tolerance and resistance.
●No adjust between the control circuit and the sensor.
●They are also useful for insert to PCB in the constant length.

SPECIFICATIONS


Temperature rating  : -40℃ to 125℃
B value : 3325K ~ 4750K
Determined by rated zero-power : Resistance at 25℃and 85℃

Resistance value at 25℃  :

1 K ohms
2 K ohms
3.3 K ohms
5 K ohms
10 K ohms
15 K ohms
33 K ohms
47 K ohms
50 K ohms
100 K ohms
470 K ohms

Dissipation constant          2mW/℃
Thermal time constant      Typically 15 seconds in air.
Maximum power Rating   10-15 mW at 25℃
Tolerance                          ±1%   ±3%   ±5%


◆Order Map

Series Code Res. value Res. Tolerance B value Wire Forming
UHAT 103 F :  ±  1%
Temperature Sensor  at 2 5℃  10 x 10Ω H : ±  3%
    J  :  ±  5%
