◆FEATURES

●Low cost, high stability.

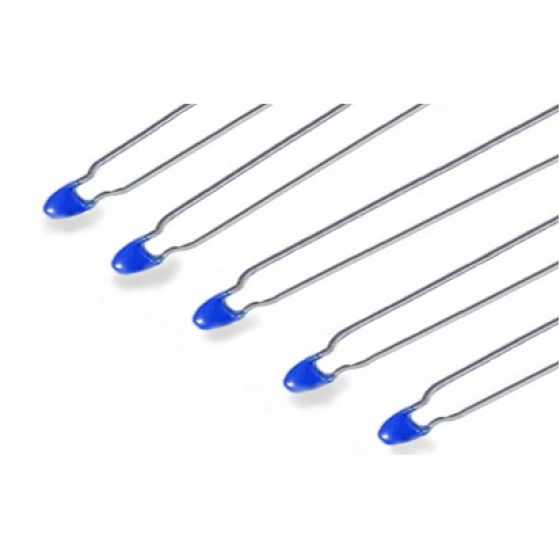

●The UHT series thermistors is a high-performance thermal sensing device.
●Excellent thermal cycle endurance and they small B-value tolerance and resistance.
●They insure temperature precision of ±0.3℃ and can be employed for very accurate temperature control or compensation.
●No adjust between the control circuit and the sensor.

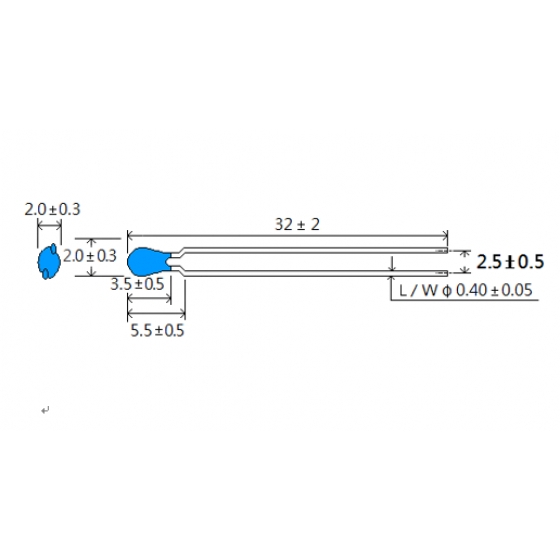

●They are also useful for insert to PCB in the constant length.


◆SPECIFICATIONS

●Temperature rating : -40℃ to 125℃
●B value : 3325K ~ 4750K
●Determined by rated zero-power : Resistance at 25℃and 85℃

●Resistance value at 25℃ :

2 K ohms
5 K ohms
10 K ohms
30 K ohms
47 K ohms
50 K ohms
100 K ohms
470 K ohms


Dissipation constant          2mW/℃
Thermal time constant      Typically 15 seconds in air.
Maximum power Rating   10-15 mW at 25℃
Tolerance                            ±0.5%    ±1%   ±3%   ±5%


◆Order Map

Series Code	Res. value	Res. Tolerance	B value
UHT	103	D : ±0.5 %
Temperature Sensor	at 2 5℃  10 x 103 Ω	F :  ±  1%
		H : ±  3%
		J  :  ±  5%
